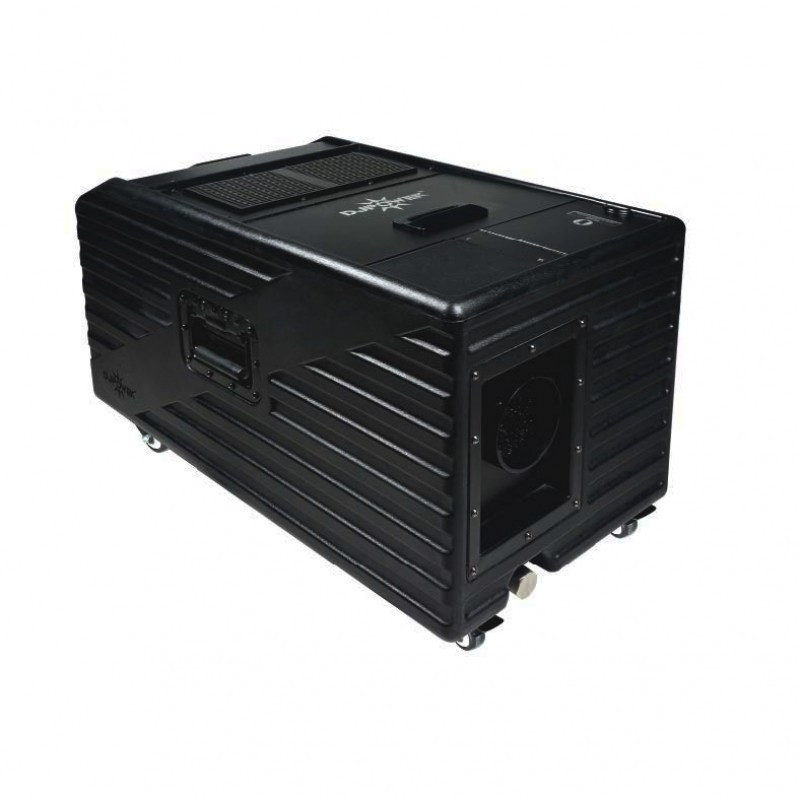

Similar to the H-SW3000, the world's first monocoque low water fog machine, the X-SW2200 can create a low, continuous fog that wraps the floor and dissipates without rising. The effect it produces is perfect for large clubs, stage productions, conferences and rental companies.
Using ultrasonic technology, the need for dry ice is eliminated, so the main consumable is pure water, saving the environment, cost and space. In addition, the tube material has been improved, which is lighter than similar models. There is also control via built-in LCD, 3-pin & 5-pin DMX and a rainproof design.
The body is made of durable material, with austenitic welding and anti-corrosion primer.
Main features
- Rainproof design, long-lasting body with austenite welding and anti-corrosive primer
- Advanced no-fluid protection
- Advanced no-water protection
- Anti-loose power plug
- Low fluid consumption, 3 L fluid reservoir, 2 hours on full output
- Built-in LCD control, 3-pin & 5-pin DMX control
- Integrated in a plastic case (with castors), applicable for touring
- Automatically replenish water in the atomization chamber, continuous use
- Drain holes design for water tank, free from leakage
Technical characteristics
Input voltage |
220 - 240 VAC 50/60 Hz |
Breaker |
10 A / 250 V |
Total power consumption |
2000 W |
Heat-up time |
appr. 4 - 5 min |
Max output volume |
appr. 15,000 cuft/min |
Fluid consumption rate |
appr. 29 min/L |
Max output coverage |
appr. 300 m2 |
Water tank total capacity |
22 L |
Fluid tank capacity |
3 L |
DMX channel range |
3 |
Consumables |
PRO-V/PRO-A/PRO-C & water |
Machine dimensions |
75.9 × 39 × 44.4 cm |
Packing dimensions |
86 × 46 × 51 cm |
Net weight |
32 kg |
Gross weight |
36 kg |
