Sparkular uflamer X-Gasboom

uFlamer X-Gasboom is the first gas flame machine with 180° wave angles. It has 5 types of optional nozzles, 2/4 positions for built-in cartridges positions, flame effect height from 2 to 8 m for versatile indoor and outdoor applications.

It inherits all the safety features of uFlamer Gasboom, including 0.1 s super accurate flame monitoring, emergency stop connector with cascade power cut, double high voltage electronic ignition system, safety lock, double magnetic valves, shut-off valve, ARM warning light etc.

Main features

• The first gas flame machine with 180° waving angles
• Waving motor with angle block detection and memory function
• Multiple optional nozzles, effects from 2 to 8 m high
• Super sensitive flame monitoring
• E-stop connector for cascade power cut-off, all machines can be controlled with a single E-stopper box
• Safety lock with switchable test mode, safer for service and testing
• High voltage double electronic ignition system for proper ignition
• Double magnetic valves installed in series for greater safety
• Optional 2/4 gas cartridges holder
• Individual shut-off valve, check valve and filter for each cartridge
• Waterproof design, can be used in heavy rain
• Built-in 18650 battery design

Technical characteristics

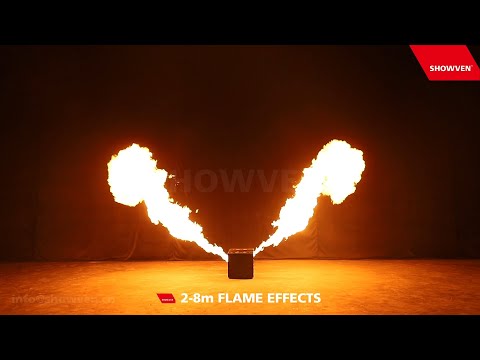

• Flame height: 2 - 8 m (depending of nozzle size, firing time, temp. etc)
• Housing material: 304 stainless steel
• Effect direction: 180° (±90°)
• E-Stop interface: yes, can be connected in series
• Dual magnetic valves: yes, connect in series
• High sensitive flame monitoring: yes, sensitivity up to 0.1 s
• Interface: Neutrik powerCON TRUE1 IN/OUT; waterproof 3-pin and 5-pin XLR IN/OUT
• Control: DMX 512, 9 - 60 V voltage input wireless, with Wirelss DMX receiver (5-pin DMX IN with 5 V_DC power supply)
• Ignition: 2 x high voltage electron ignition
• Built-in battery design: yes, 8 x 18650 lithium cells
• Waterproof level: can be used in heavy rain
• Firing duration: 0.1 - 30 s
• Fuel: LPG propane or butane gas, gas cartridges bottle, aerosol cartridges
• Cartridge holder: twin cartridge holder with 2 shut-off valves and 2 non-return valves; quadruple cartridge holder with 4 shut-off valves and 4 non-return valves (optional)
• Micro filter: yes, installed between shut-off and non-return valves
• Input and power: 100 - 240 V_AC 50/60 Hz, 200 W
• Dimension: 400 x 360 x 350 mm
• Weight: 20 kg
