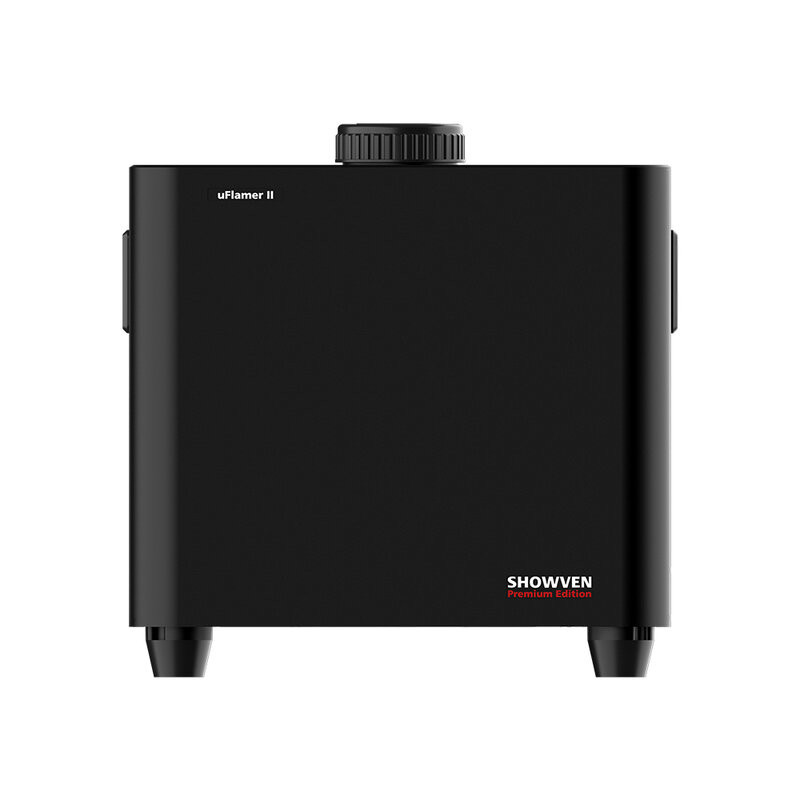

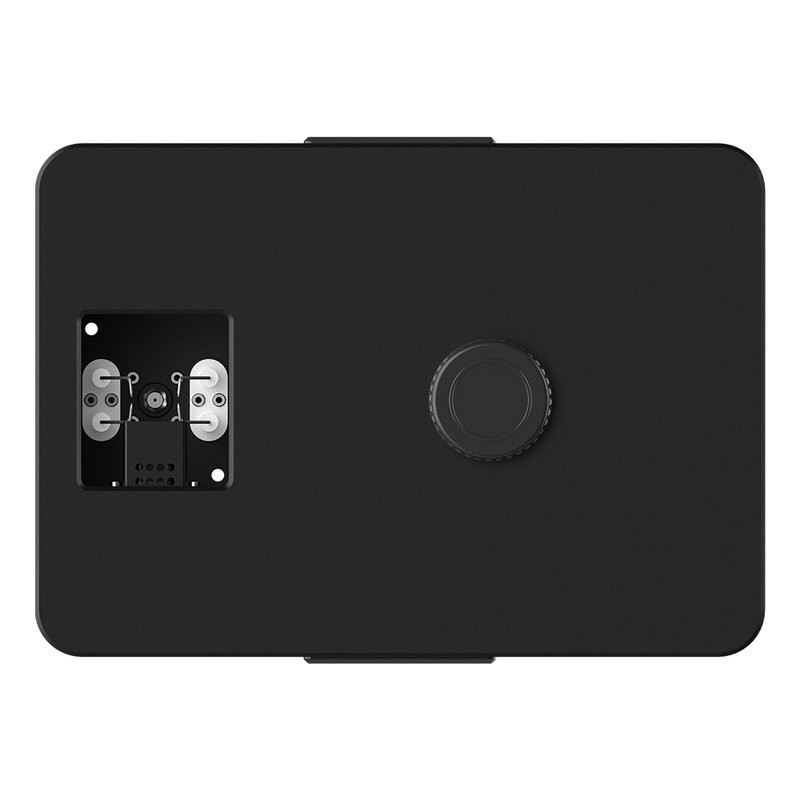

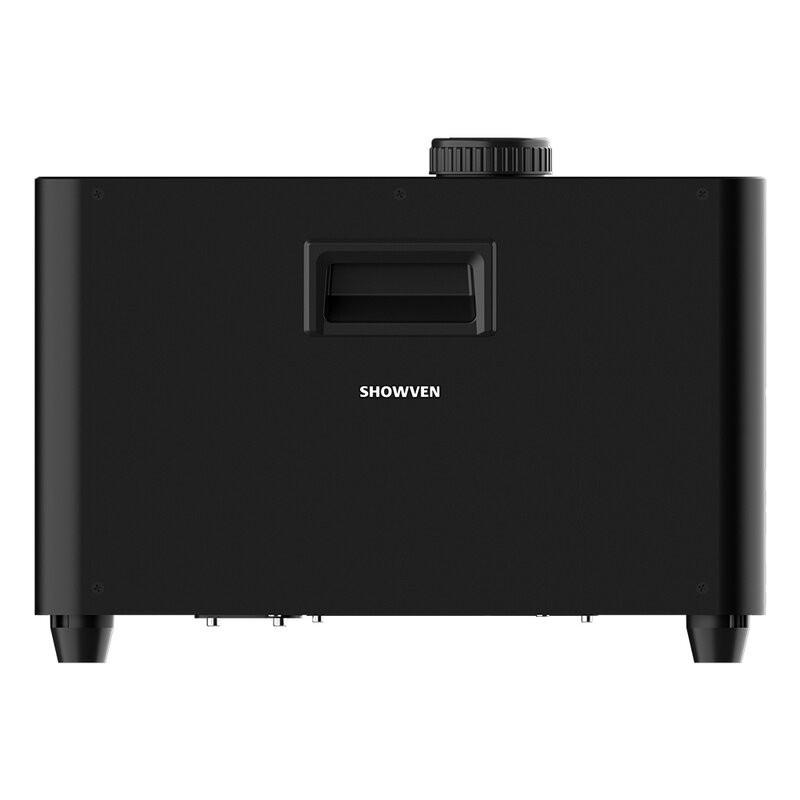

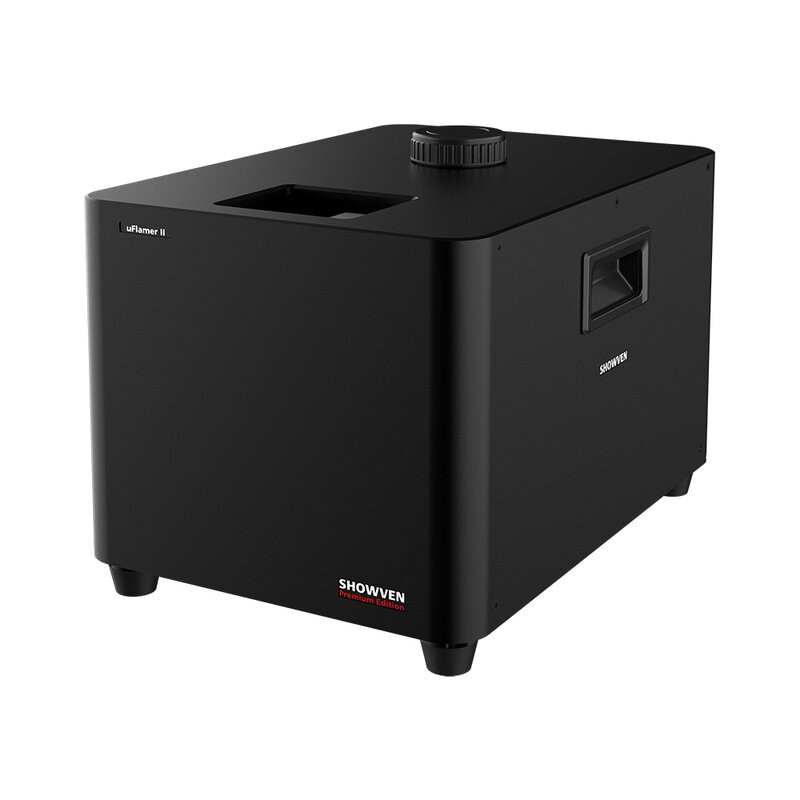

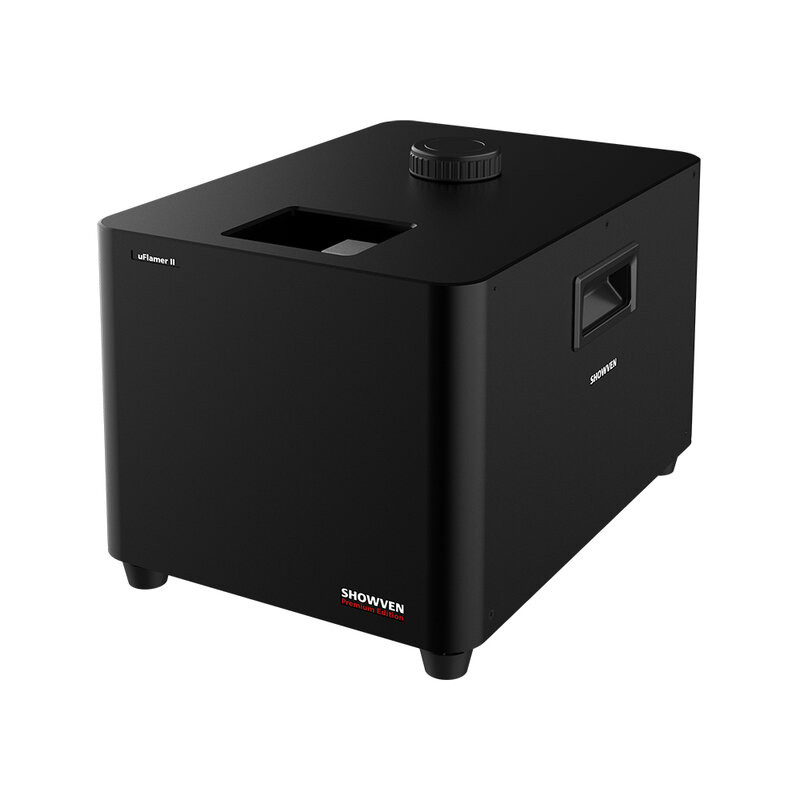

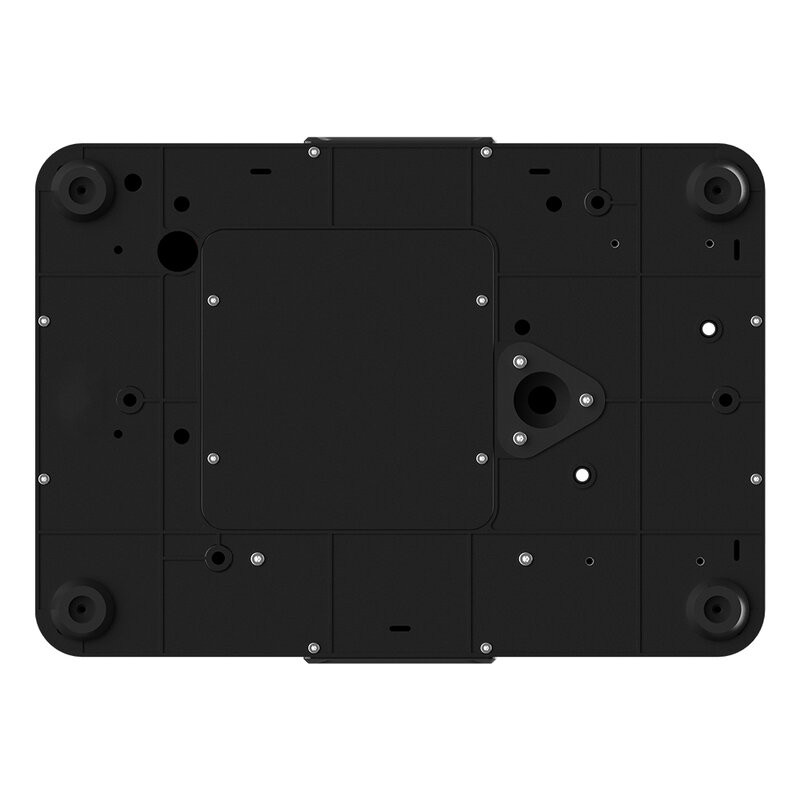

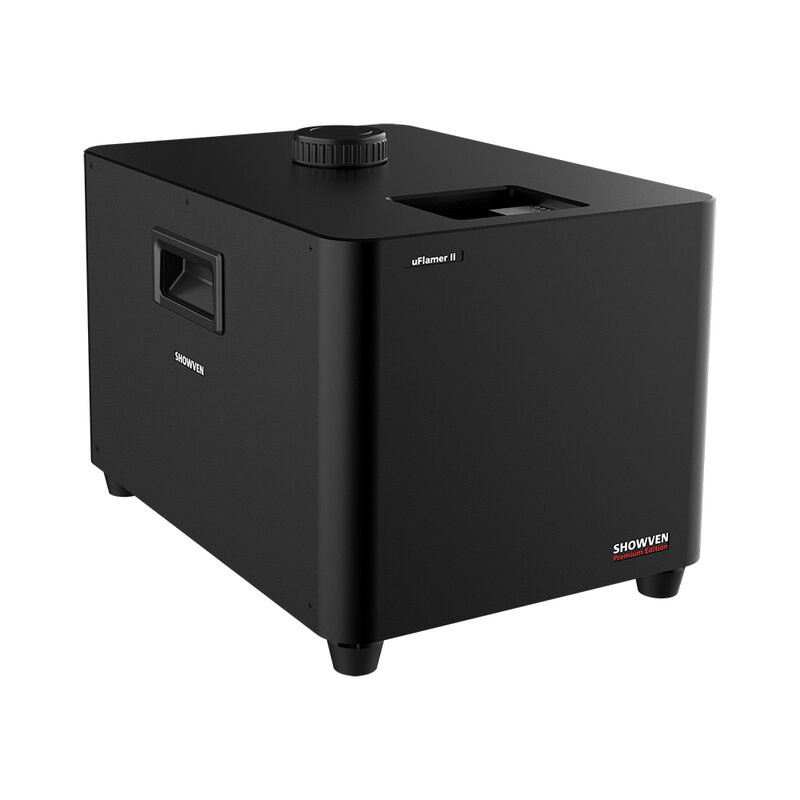

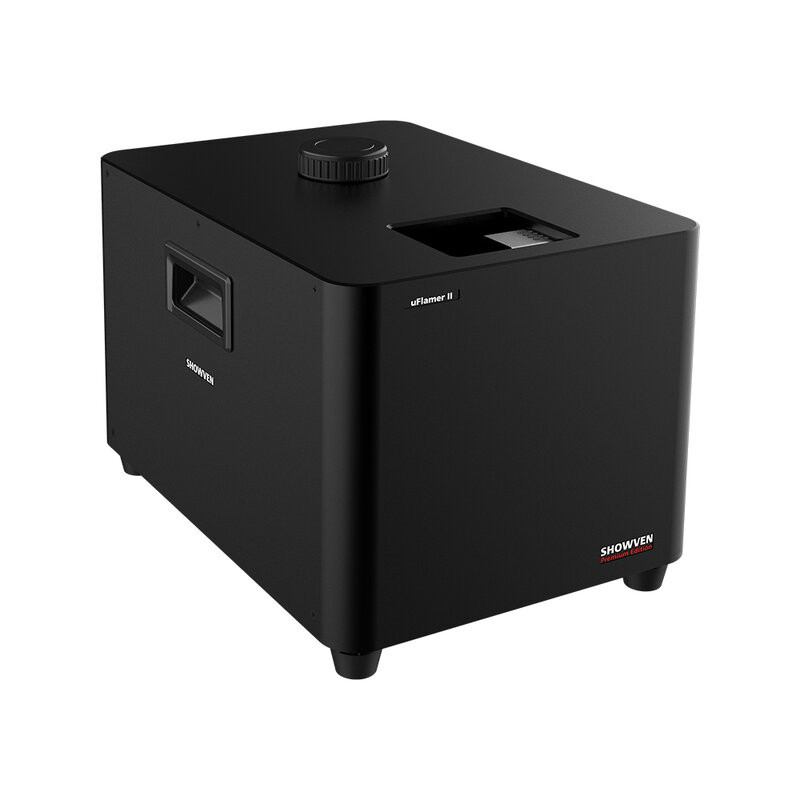

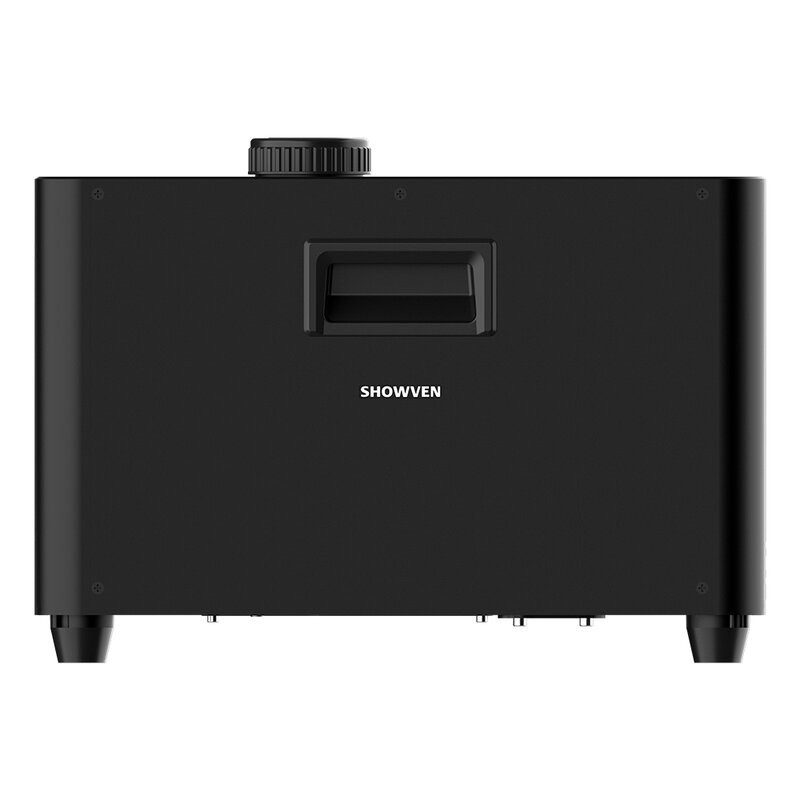

Sparkular uFlamer II

uFlamer II is the second generation flame machine that can produce higher flames (up to 12 m) than the uFlamer it is based on. And it is also the first liquid flame machine with flame monitoring functions.

Aluminum housing structure, durable metal tube structure, multiple safety configurations, etc. are all features of this professional machine. With built-in high pressure double pump, it can generate powerful flame with better burning speed.

Main features

• The first liquid flame machine with flame monitoring function
• Bigger and higher flame, up to 12 m high
• Aluminum housing structure, premium design
• Powerful double pump ensures faster burning speed, less fuel residue
• Multiple safety configurations: cascade power cut-off
• Built-in 18650 battery

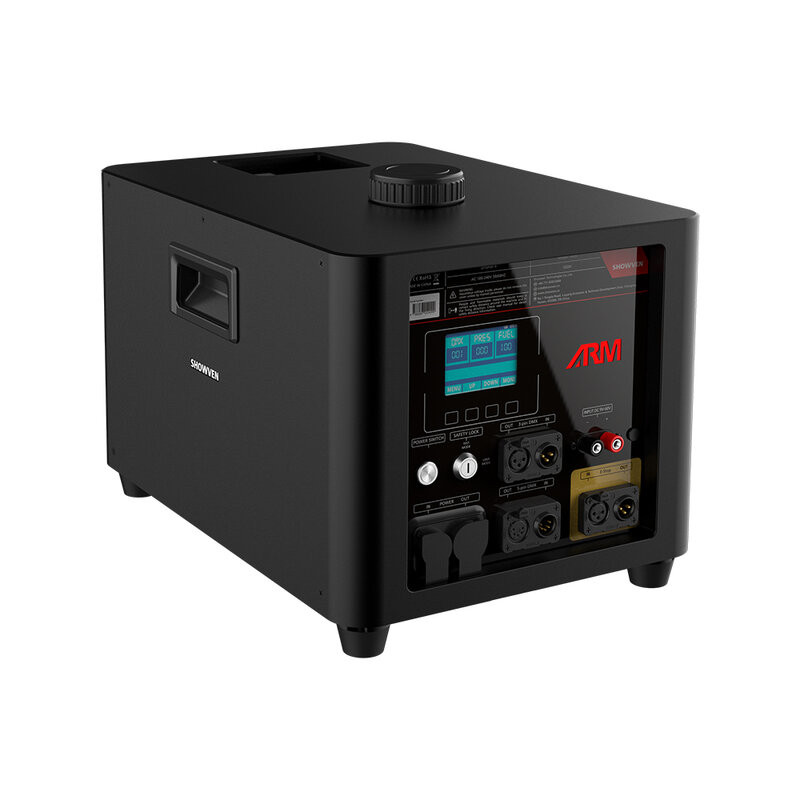

• Emergency stop connector, ARM indicator light, safety switch, etc.
• Built-in 7.8 L fuel tank
• Double valve, double ignition system
• Durable metal tube construction

Technical characteristics

• Input and power: 200 - 240 V_AC 50/60 Hz, 500 W
• Housing material: aluminum
• Effect direction: vertical
• Max. flame height (no wind): nozzle H 10 - 12 m
• Fuels: Isopar G, H, L, M; Isopropanol
• Fuel tank capacity: 8 L
• Fuel consumption rate: nozzle M 60 ml/s

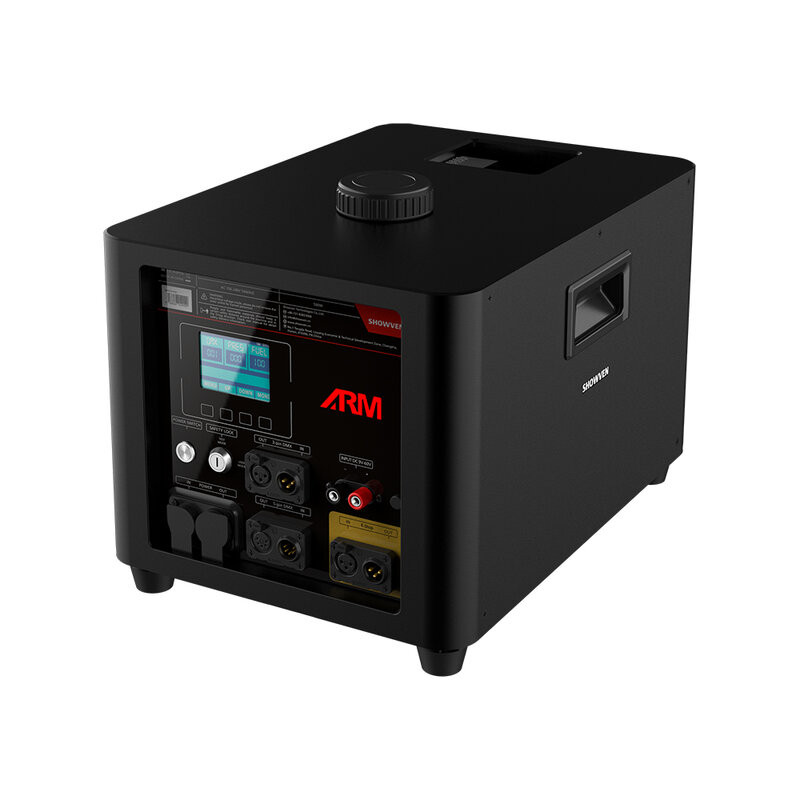

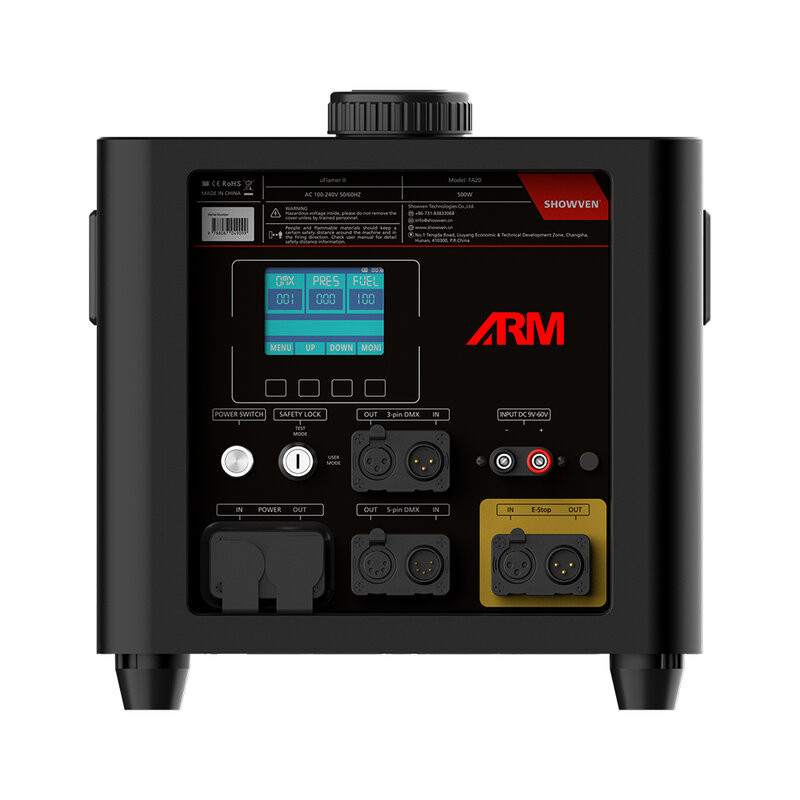

• Interface: Neutrik powerCON TRUE1 IN/OUT, waterproof 3-pin and 5-pin XLR IN/OUT
• Control: DMX, 9 - 60 V Pyro signal
• E-stop: yes
• ARM indicator light: yes
• Liquid level sensor: yes
• Ignition: 2 x high voltage electron ignition
• Valve: dual
• Pump: dual
• Built-in battery design: yes, 18650 battery
• Use in rain: yes

• Dimensions: 460 x 330 x 330 mm
• Weight: 25 kg
