TARM Lasers tarm seven

The tarm 7 projector, made in Germany, is a color RGB laser system with fully analog color modulation. The guaranteed output power is 6500 mW after optics. It is equipped with a red (2400 mW / 638 nm), green (800 mW / 520 nm) and blue (3000 mW / 450 nm) diode laser source.

The strong points, in addition to the power of 6500 mW, are a very high maximum scan rate of 45 kpps @ 8° ILDA for graphic projection, high precision diode array to provide excellent beam divergence of less than 0.9 mrad for 3.5 mm diameter, pure diode laser, new method to increase beam precision, quality and good color fading, very bright 638 nm single mode red.

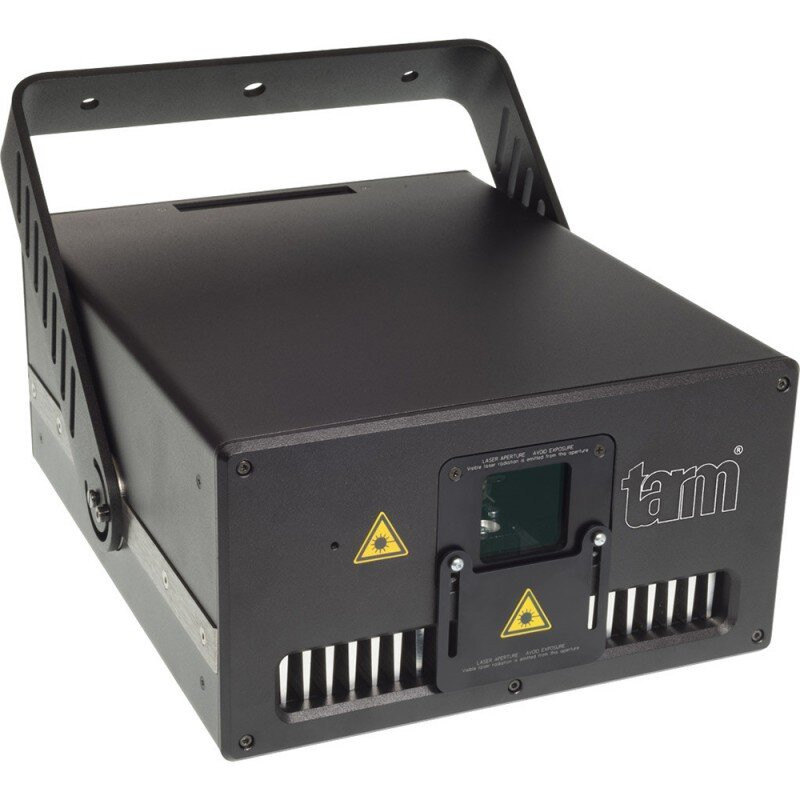

The housing of the Tarm 7 is built very robustly and dust-proof, with no air circulation inside: this reduces maintenance operations to a minimum. The mounting bracket allows you to hang and mount the laser system vertically.

tarm 7 units can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface. They also have a built-in memory with preset patterns, which can be easily activated via DMX or in automatic mode.

Tarm 7 is suitable for professional laser shows and graphic projections for clubs, bars, DJs, festivals, discos, live shows, medium-sized stages etc. It can be used by both beginners and professionals.

Technical characteristics

• Guaranteed power at aperture: 6500 mW
• Power red: 2400 mW / 638 nm
• Number of single red diodes: 12
• Power green: 1800 mW / 520 nm
• Number of single green diodes: 2
• Power blue: 3000 mW / 450 nm
• Number of single blue diodes: 2
• Beam specifications: ca. 3.5 mm / 0.9 mrad
• Laser sources: diode
• Laser class: 4
• Operation modes: ILDA
• Scanner: 45 kpps @ 8° ILDA; optional as upgrade: CT-6210H incl. RTI RayScan driver: 60 kpps @ 8° ILDA, max. 68° (@ 35 kpps)
• Scan angle max.: 50° (@ 30 kpps)
• Accessories: browser interface for calibration, power cable, manual, key, interlock connector
• Power supply: 85 - 250 V_AC
• Power consumption: 320 W
• Dimensions: 320 x 260 x 140 mm
• Weight: 12 kg
