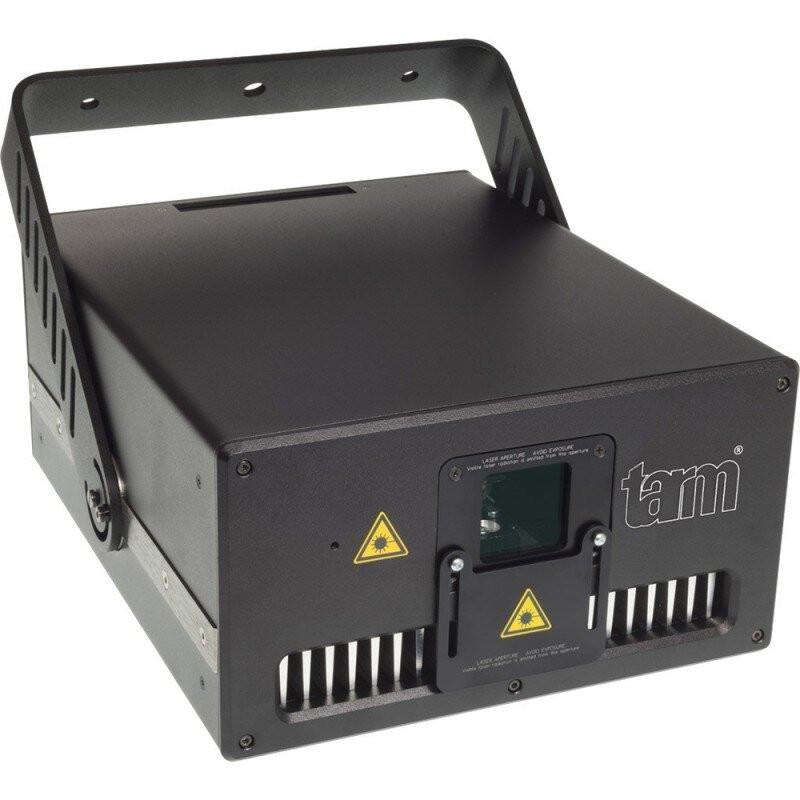

The tarm 4 show laser projector, made in Germany, is a color RGB laser system with fully analogue and diode color modulation. Guaranteed output power is specified at 3400 mW after optics. It is equipped with a red (1200 mW / 638 nm), green (900 mW / 520 nm) and blue (1500 mW / 450 nm) diode laser source.
Highlights include a guaranteed output power of 3400 mW, a very high maximum scan rate of 45 kpps @ 8° ILDA for graphic projection, high precision diode array to provide excellent beam divergence of less than 0.9 mrad for extremely narrow beam diameter of 3.5 mm, pure diode laser, new method to increase the beam precision of single-mode diodes, vivid colors and good color fading, very bright 638 nm single-mode red.
The tarm 4 housing is very robustly built and dust-proof, so there is no air circulation inside: this keeps maintenance operations to a minimum. The mounting bracket allows you to hang and mount the laser system vertically. Tarm 4 units can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface. They also have a built-in memory with preset patterns, which can be easily activated via DMX or in automatic mode.
Tarm 4 is suitable for laser applications for professional shows and graphic projections for clubs, bars, DJ, festivals, discos, live shows, laser shows, rental services and small stages. It can be used by both beginners and professionals.
Technical characteristics
- Guaranteed power at aperture: 3400 mW
- Power red: 1200 mW / 638 nm
- Number of single red diodes: 6
- Power green: 900 mW / 520 nm
- Number of single green diodes: 1
- Power blue: 1500 mW / 450 nm
- Number of single blue diodes: 1
- Beam specifications: ca. 3.5 mm / 0.9 mrad
- Laser sources: diode
- Laser class: 4
- Operation modes: ILDA
- Scanner: 45 kpps @ 8° ILDA; optional as upgrade: CT-6210H incl. Rti RayScan driver: 60 kpps @ 8° ILDA, max. 68° (@ 35 kpps)
- Scan angle max.: 50° (@ 30 kpps)
- Accessories: browser interface for calibration, power cable, manual, key, interlock connector
- Power supply: 85 - 250 VAC
- Power consumption: 320 W
- Dimensions: 320 x 260 x 140 mm
- Weight: 11.5 kg
