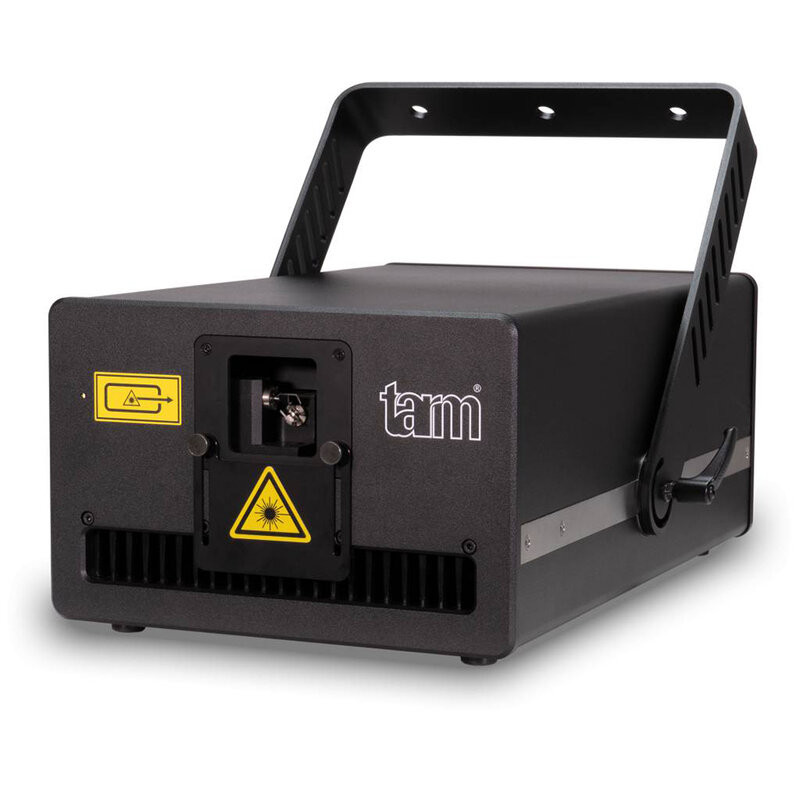

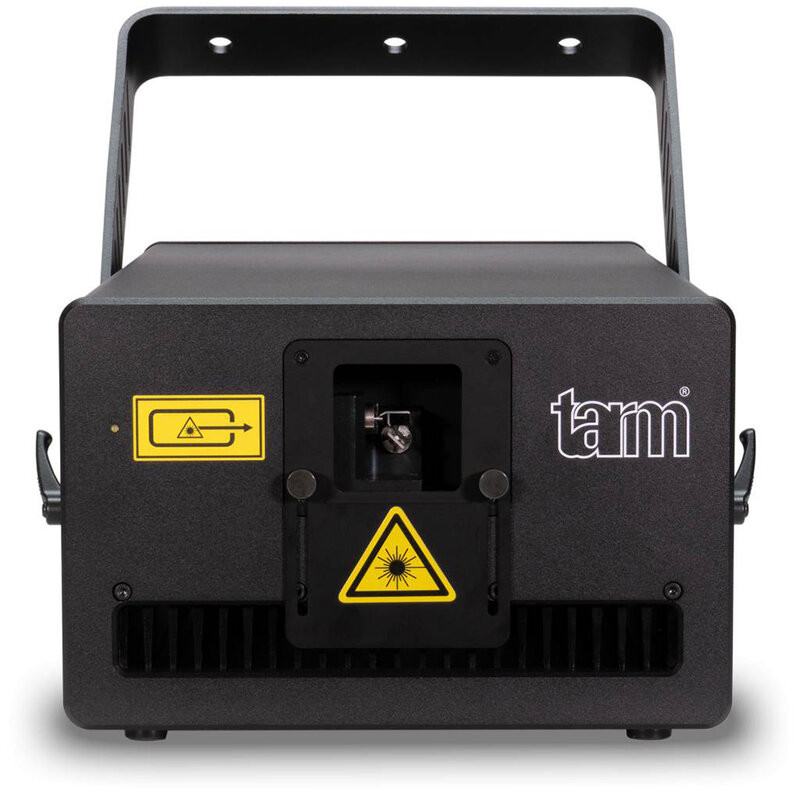

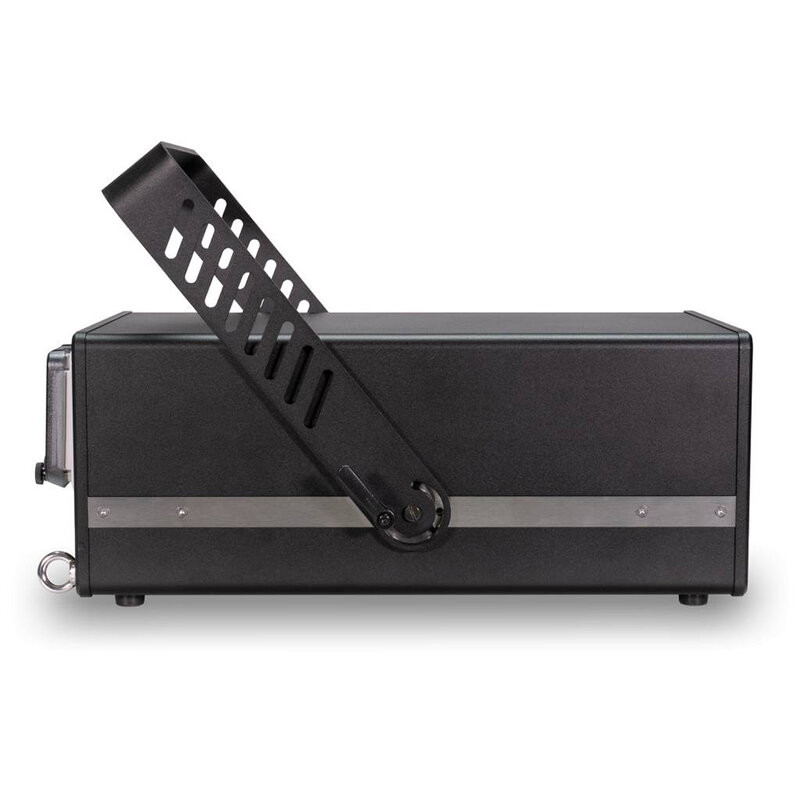

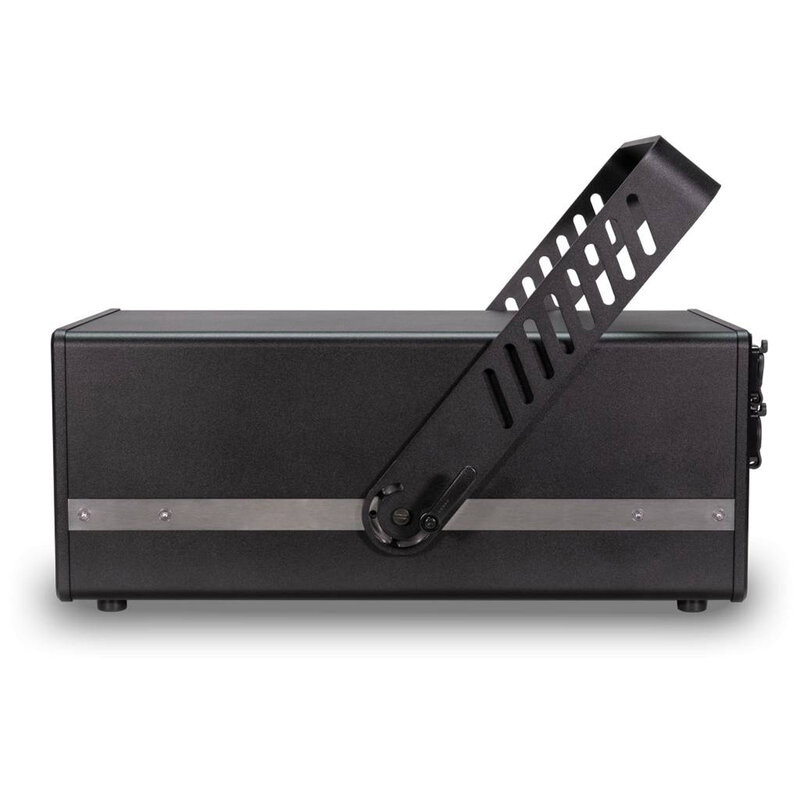

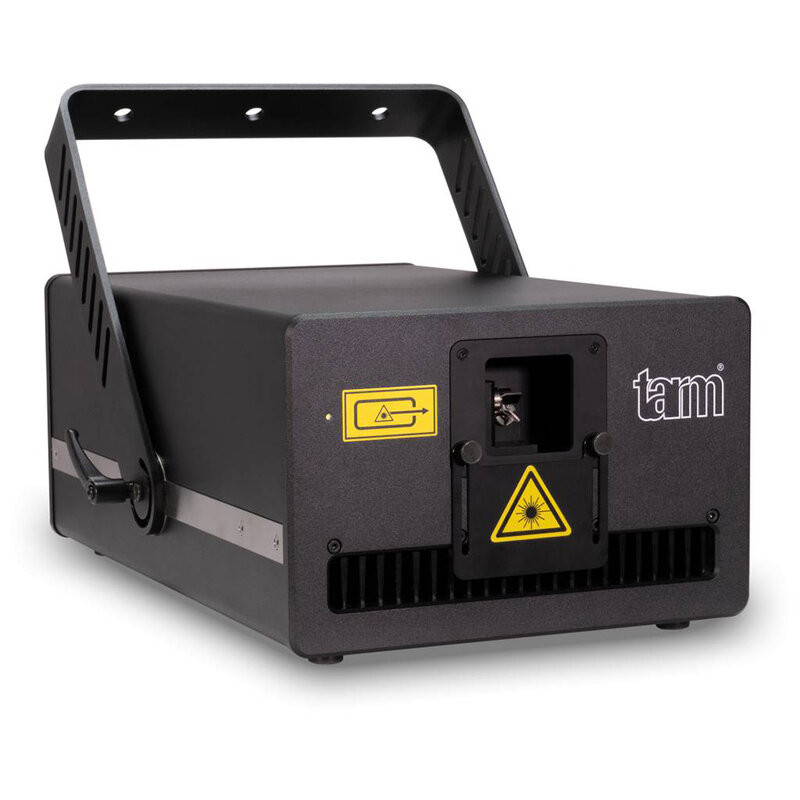

tarm 13 IP65 is a compact high-end show laser made in Germany, ideal for the best professional laser show applications of all kinds.
It is built with the latest RTI semiconductor laser modules, which are specially designed to keep the spot size and divergence the same on both the x and y axis. This offers significant advantages over solutions with very good divergence on one axis, but poor divergence on the other. The laser modules inside the tarm 13 IP65 are different: the spot size and shape are the same for all colors and on both axes!
The beam specifications of the new tarm 13 IP65 are characterized by a diameter of only approx. 5 mm and a divergence < 0.8 mrad, which applies to both axes. The extremely small beam diameter allows the use of very small mirrors, 4.5 mm, which results in low inertia and therefore very good scanning performance. This is especially important, as the tarm 13 IP65 can be used for any type of laser show application: super sharp beams and vivid colors for large-scale concerts and festivals, but also a perfectly matched beam for sharp graphics.
This laser impresses with a guaranteed RGB output power of 13,000 mW. Excellent visibility is achieved with the new RTI semiconductor laser modules (RSL) with special wavelengths for increased visibility: 4000 mW / 637 nm for a very bright red combined with 6000 mW / 525 nm green and a powerful blue laser module with 5000 mW / 455 nm. The 525 nm green provides a warmer shade of green than the 520 nm diodes and has a higher visibility.
These new RSL modules, with their extremely low divergence and homogeneous beam shape, make the tarm 13 IP65 a professional laser system of the highest level. In addition, they are maintenance-free and do not lose internal alignment.
Standard scanners can operate at a maximum of 45 kpps at 8° with a maximum scan angle of 50°. CT-6210 scanners with LAS Turboscan drivers are available as an option and provide even higher scan speeds of up to 60 kpps at 8° ILDA.
The tarm 13 IP65 is delivered with a ShowNET laser mainboard as standard. This means it has a multitude of control features already built-in: Control via DMX or Art-Net, just like a normal lighting fixture, are possible as well as computer control via ILDA or LAN. Of course the laser can be run in stand alone operation, too. The contents for playback (for DMX, Art-Net, stand-alone, etc.) can be fully customized. As the ShowNET laser mainboard comes with a full license of the Showeditor software, it is easy to create custom content for the built-in memory or even directly control the laser with a computer - either live or for creation an playback of complete laser shows.
The powerful tarm 13 IP65 is suitable for indoor and outdoor laser show applications at concerts, festivals and other large events. Demanding graphic projections or projections over long distances are possible without any problems, thanks to the very good divergence.
Key Features
- 13 W total RGB power in a small housing of only 44.1 x 26 x 15.3 mm
- Super small spot of approx. 5 mm for low inertia and therefore fast scanning
- All wavelengths matched in divergence and beam size
- Brilliant colors and great color fade
- Different, brighter wavelengths for greater visibility
- Very good scanning performance suitable for both projections and beams
- Extremely low divergence < 0.8 mrad on both axes!
- Compact form factor, module dimensions equal to Coherent OPSL modules
- Weight of only 17.5 kg
- Laser modules do not move out of internal alignment
- Maintenance-free laser modules
- Integrated network switch for control signal connection
- High-quality product, Made in Germany
User benefits
- Guaranteed high output power of 13,000 mW
- Capable of handling complex graphics
- Intense beams that are extremely sharp, especially when compared to other lasers of this power
- Powerful integrated motherboard with advanced configuration features and DAC
- Robust compact housing
- Waterproof flight case included
- ShowNET motherboard
- Free laser show control software included
Areas of use
- Indoor and outdoor laser shows at concerts, festivals and other large events
Technical characteristics
- Guaranteed power at aperture: 13,000 mW
- Power red: 4000 mW / 637 nm
- Power green: 6000 mW / 525 nm
- Power blue: 5000 mW / 455 nm
- Beam specifications: ca. 5.0 mm / < 0.8 mrad
- Scanner: 45 kpps @ 8° ILDA; optional CT-6210 with LAS Turboscan: 60 kpps @ 8° ILDA, max. 60°
- Max. scan angle: 50°
- Laser source: RSL modules
- Laser Class: 4
- Operation modes: ILDA, DMX, LAN, Art-Net, integrated SD card, stand-alone, Master/Slave; integrated intelligent ShowNET laser mainboard with display
- Basic patterns: over 120 (layers, tunnels, fences, waves, etc.)
- Power supply: 85 - 250 VAC 50/60 Hz
- Power consumption: 350 W
- Dimensions: 44.1 x 26 x 15.3 cm
- Weight: 17.5 kg
- What's in the box:
- tarm 13 IP65
- Waterproof flight case
- Power cable
- Manual
- Interlock connector, key
- Full version Showeditor software license included
