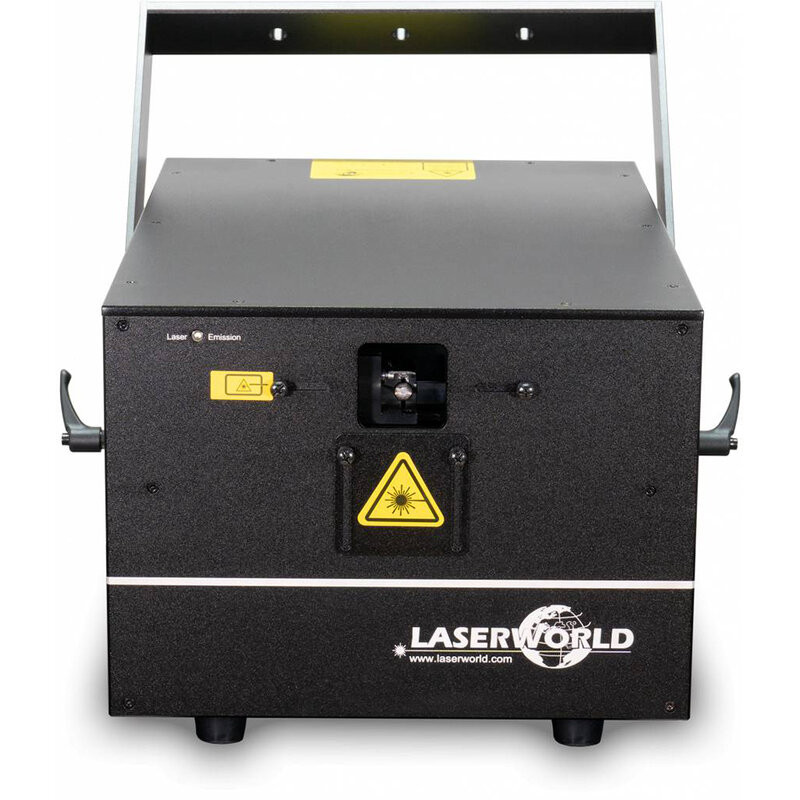

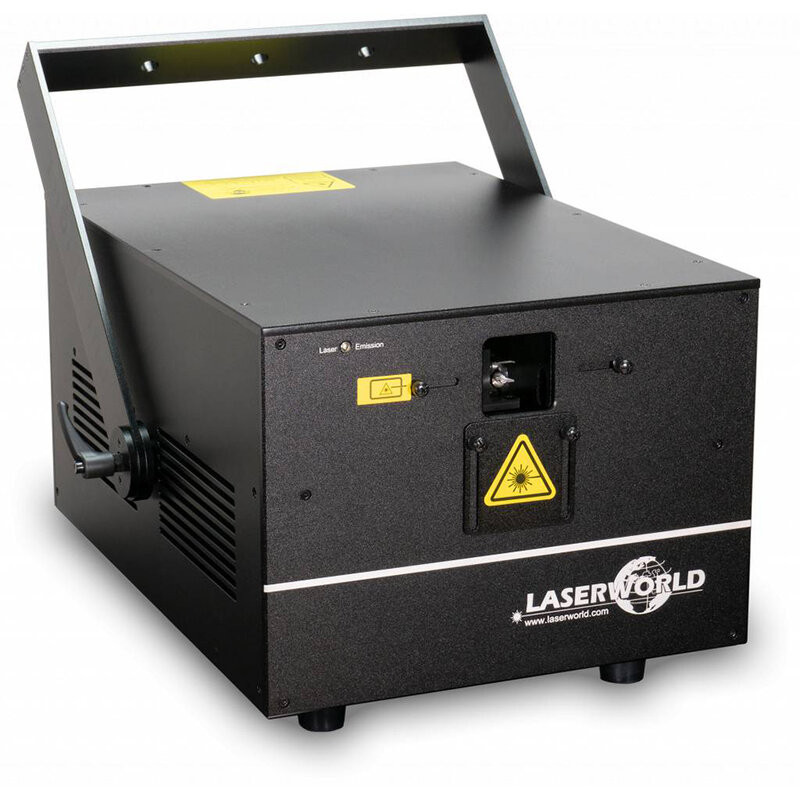

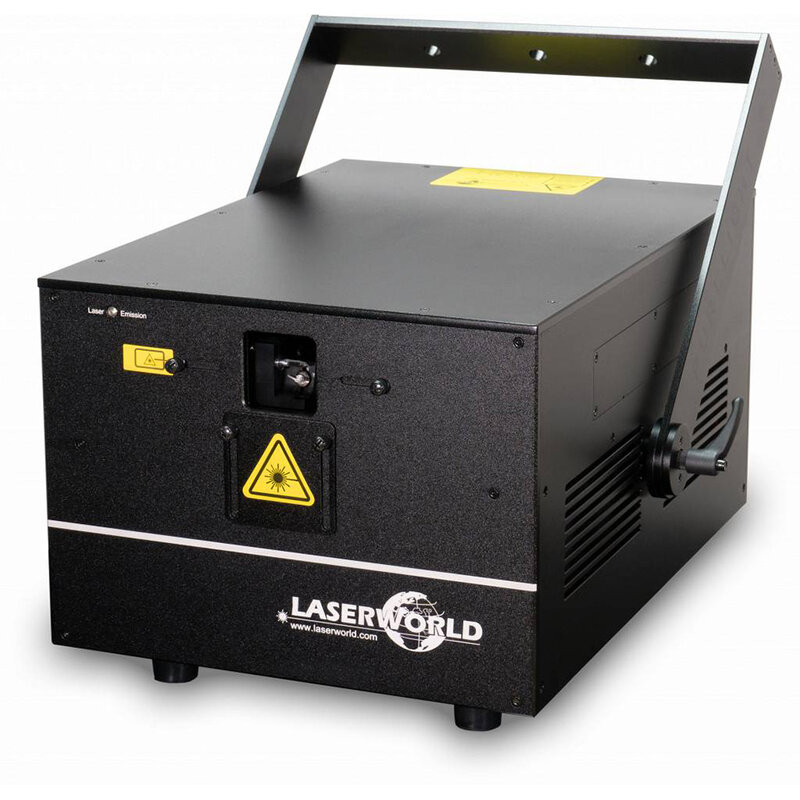

Laserworld PL-20.000RGB FB4 MK3

The PL-20.000RGB FB4 MK3 is a high-power RGB laser designed to deliver exceptional performance in a variety of professional applications. This device uses laser diodes exclusively, for excellent white balance and linear color modulation, making the light beams extremely visible.

The guaranteed power of 20,000 mW is divided between the red, green and blue diodes in these parts: red 6000 mW / 638 nm, green 8000 mW / 520 nm and blue 8000 mW / 450 nm. This combination allows for bright and intense colors, ideal for high-impact light shows.

The beam specifications are remarkable, with a diameter of approximately 6.5 mm and a divergence of 1 mrad. The scanning system is capable of operating at a speed of 40 kpps at 8° ILDA, with a maximum scanning angle of 50°, for complex and dynamic visual effects.

Via the internal FB4 output card, the PL-20.000RGB FB4 MK3 offers various control options, including DMX, Art-Net as well as direct computer control via network (QuickShow software or BEYOND software required for this). With computer control via Pangolin QuickShow or BEYOND, you can project, for example, your own or pre-programmed laser shows, logos, texts or your own graphics and animations. Via DMX / Art-Net, the pre-saved effects and animations (from QuickShow - BEYOND) can be called up and adjusted live in color, position or with other effects.

Another significant advantage of the PL-20.000RGB FB4 MK3 is its low maintenance. Thanks to the Sealed Housing technology, there is no air circulation in the optical area and the temperature is regulated via a separate heat sink section. This minimizes maintenance and cleaning work, making the device reliable and long-lasting.

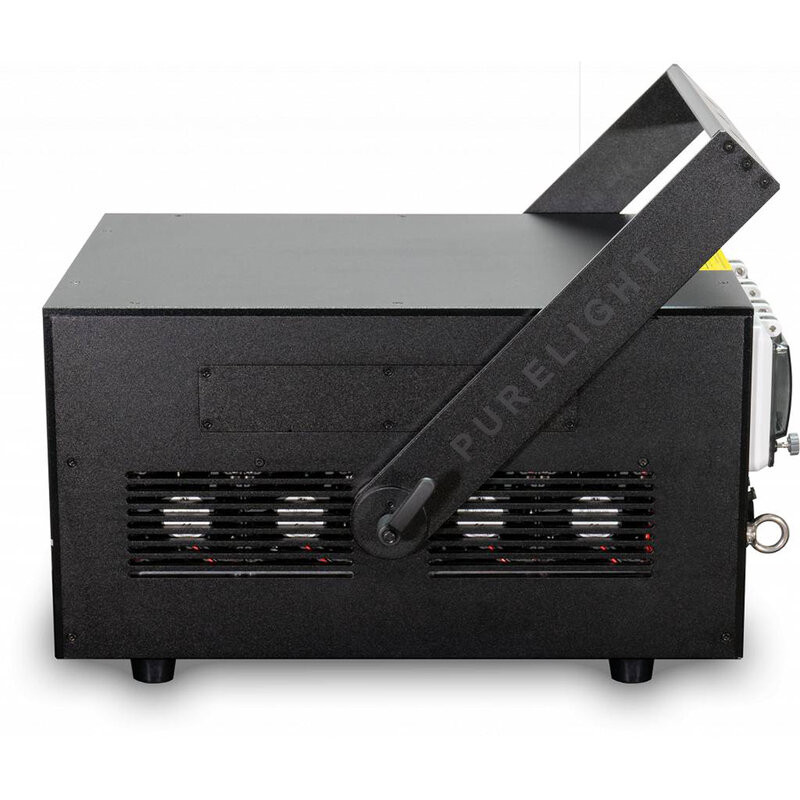

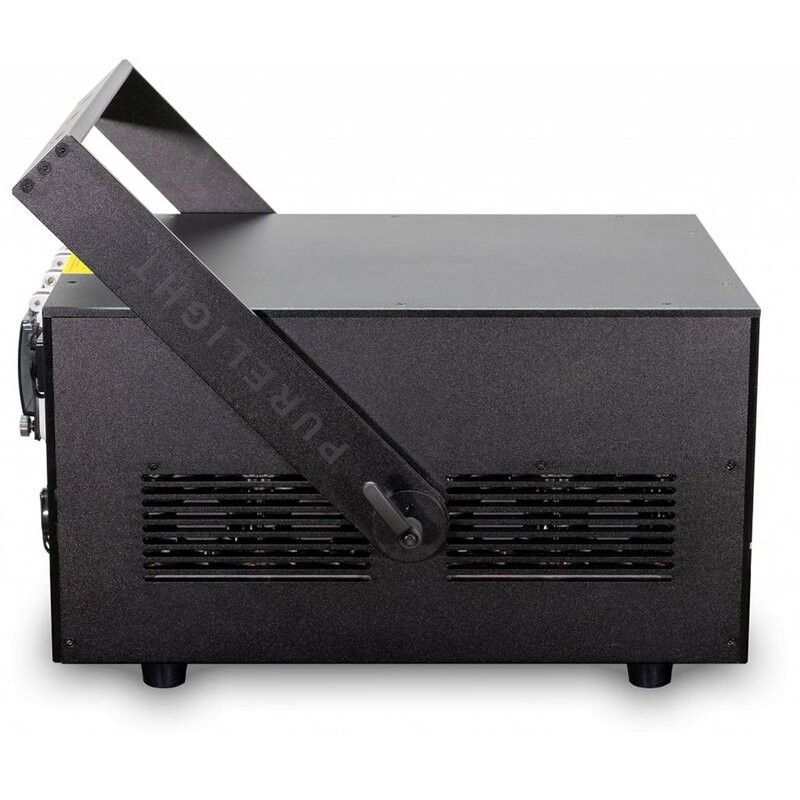

The laser is also designed to be easy to mount, with a stable 360° bracket that allows for various positions. Finally, its compactness and lightness facilitate transportation and installation in different situations.

User benefits

• High power
• Beam quality
• Control versatility

Areas of use

• Festivals and concerts
• Temporary laser shows
• Fixed installations in large clubs, medium sized stages
• Long distance beam shows

Technical characteristics

• Guaranteed power at aperture: 20,000 mW
• Power red: 6000 mW / 638 nm
• Power green: 8000 mW / 520 nm
• Power blue: 8000 mW / 450 nm
• Beam specifications: ca. 6.5 mm / 1.0 mrad
• Scanner: 40 kpps @ 8° ILDA
• Max. scan angle: 50°
• Laser source: diode
• Laser Class: 4

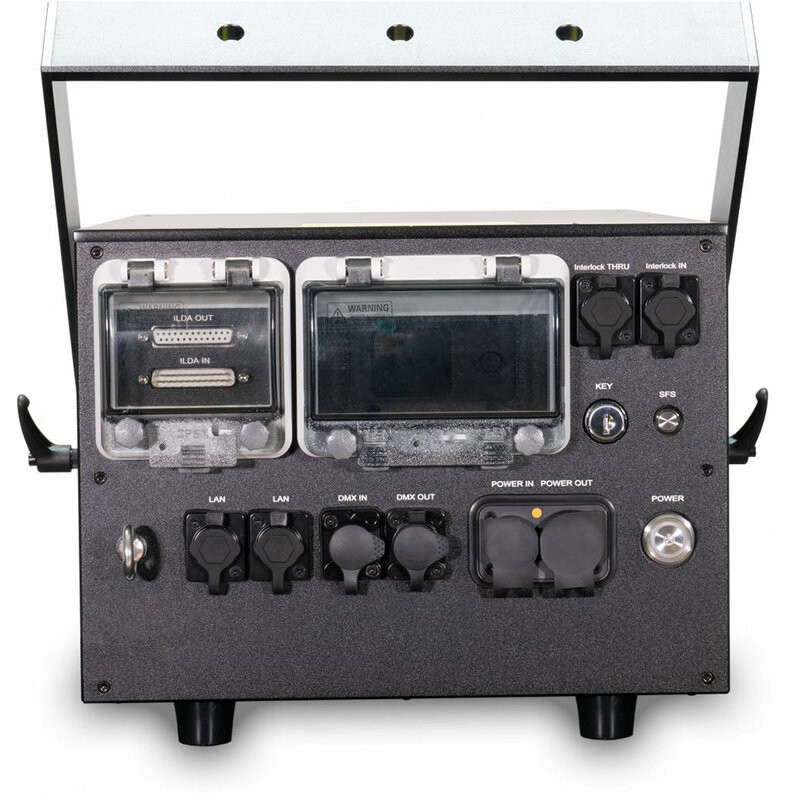

• Operation modes: FB4, ILDA, DMX, Art-Net
• Basic patterns: available for download
• IP rating: IP54
• Power supply: 85 - 250 V_AC 50/60 Hz
• Power consumption: 750 W
• Dimensions: 44 x 31.2 x 22.5 cm
• Weight: 27 kg
• What's in the box:
  • PL-20.000RGB FB4 MK3
  • Waterproof flight case
  • Power cable
  • Manual
  • Interlock, key
