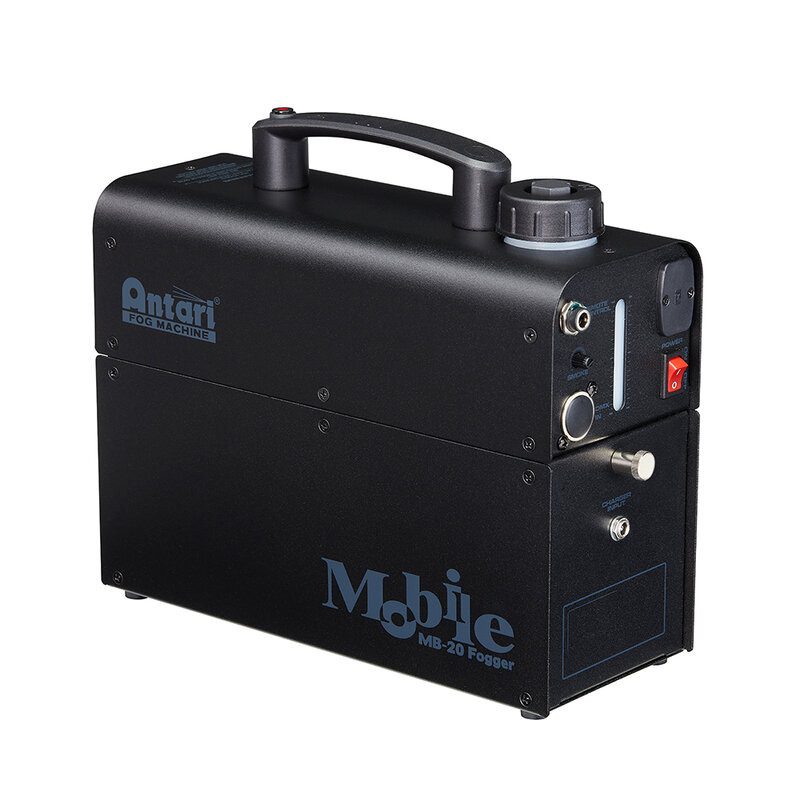

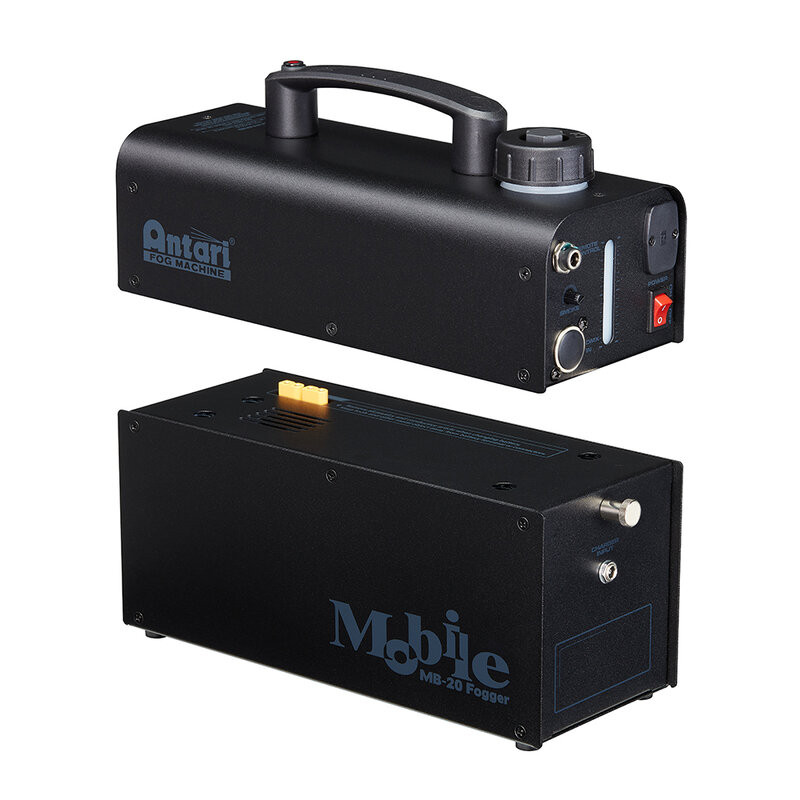

600 W mobile fog machine designed to operate reliably without the need to be connected to the mains. Battery-powered for maximum freedom, this compact and portable unit features a unique "instant-on" heating core that allows the machine to be ready in seconds and vaporize continuously. The MB-20X also features adjustable output and manual or DMX control with an optional wireless control option available.
Perfect for use in photography, film, theater, industrial testing and more.Create "atmospheric magic" anywhere, anytime, with ease.
Main features
- DIP switch
- No warm-up time
- IP-20 certification
- Fluid level indicator
- Optional wireless / wired remote control
Technical characteristics
Rated voltage:
|
12 VDC (battery), 220 - 240 VAC 50/60 Hz (battery charger)
|
Rated power:
|
600 W
|
Warm-up time:
|
1 s (approx.)
|
Fluid consumption:
|
16 mL/min
|
Fluid tank capacity:
|
0.4 L
|
Compatible fluid:
|
Antari FLM-05P Fog Fluid
|
Ambient temp. range:
|
0 to 40 ℃
|
Control methods:
|
manual DMX512 wireless (optional) cable remote (optional)
|
DMX channels:
|
1 channel
|
Connection:
|
XLR 3-pin (DMX)
|
Optional accessories:
|
Z-3 cable remote, WTR-20 wireless remote, MB-20XS power base |
Included accessories:
|
MB-20X-B battery, MB-20X-BCL charger, FLM-05P fog fluid 500 mL, FFT-20 flight case |
Dimensions:
|
293 x 108 x 238 mm
|
Weight:
|
8.5 kg
|
