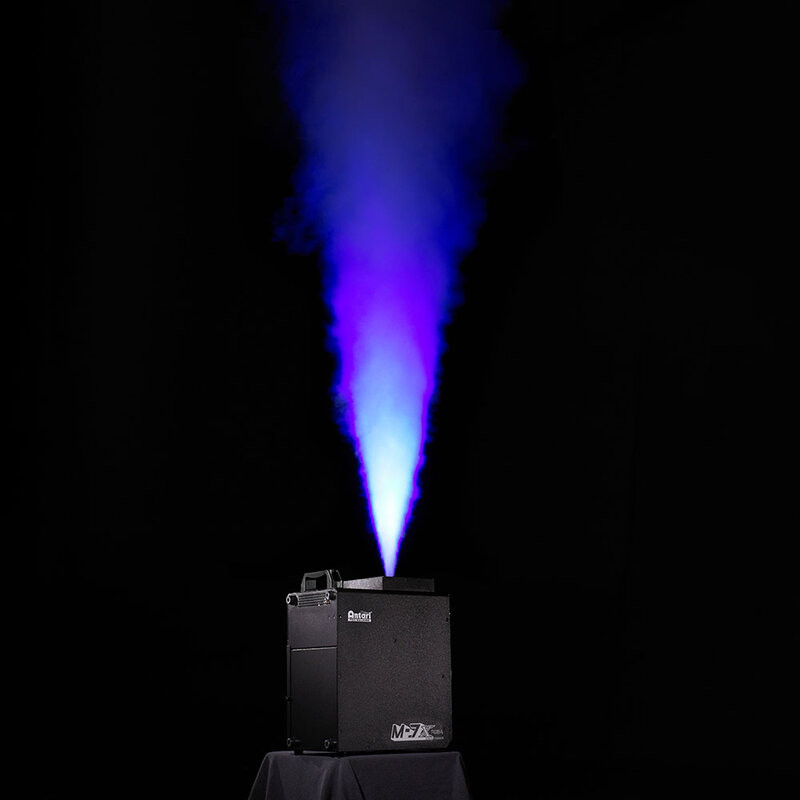

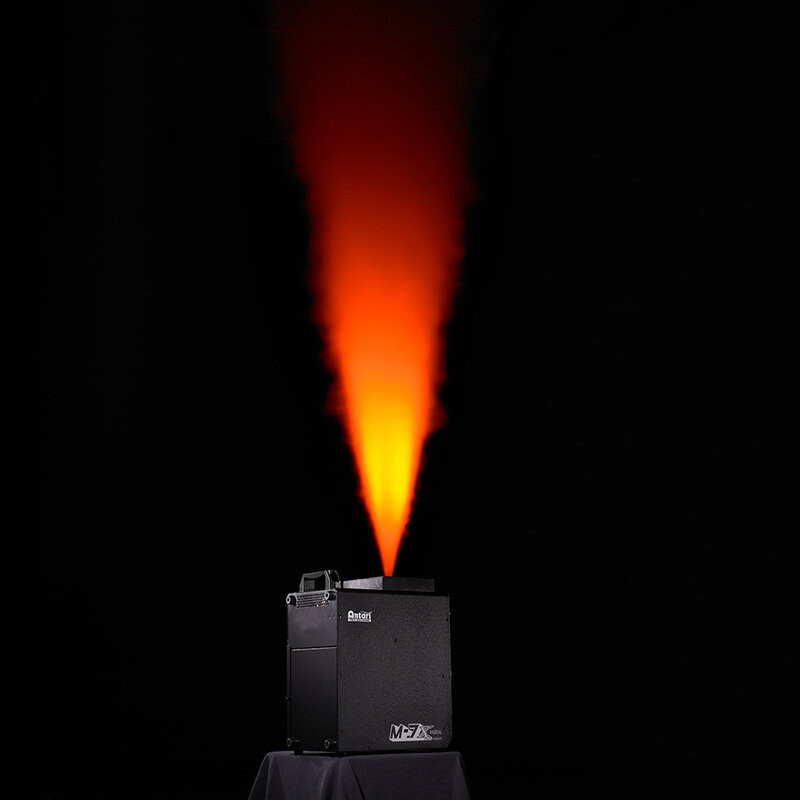

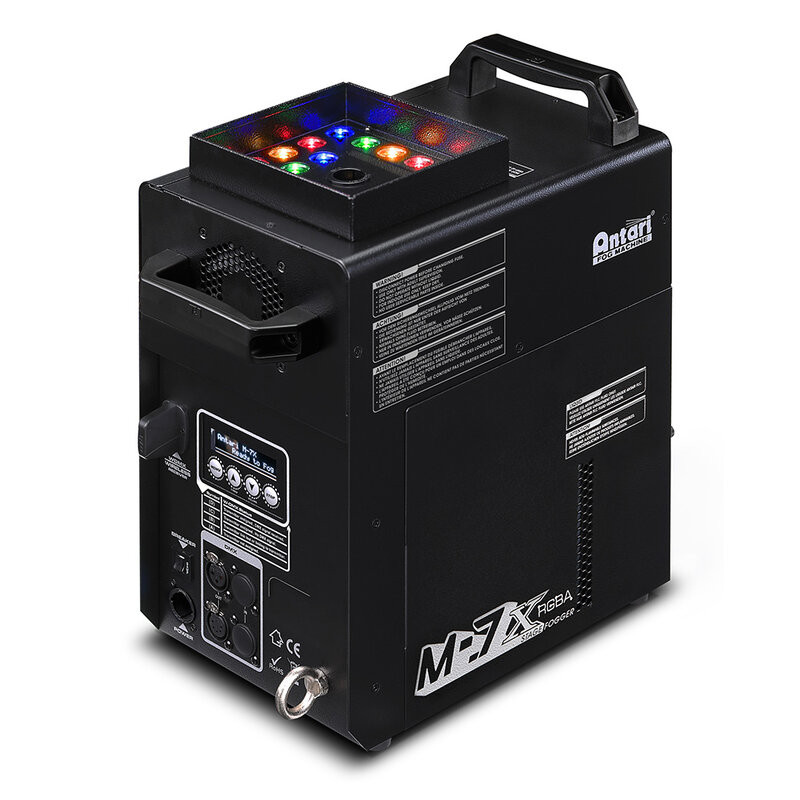

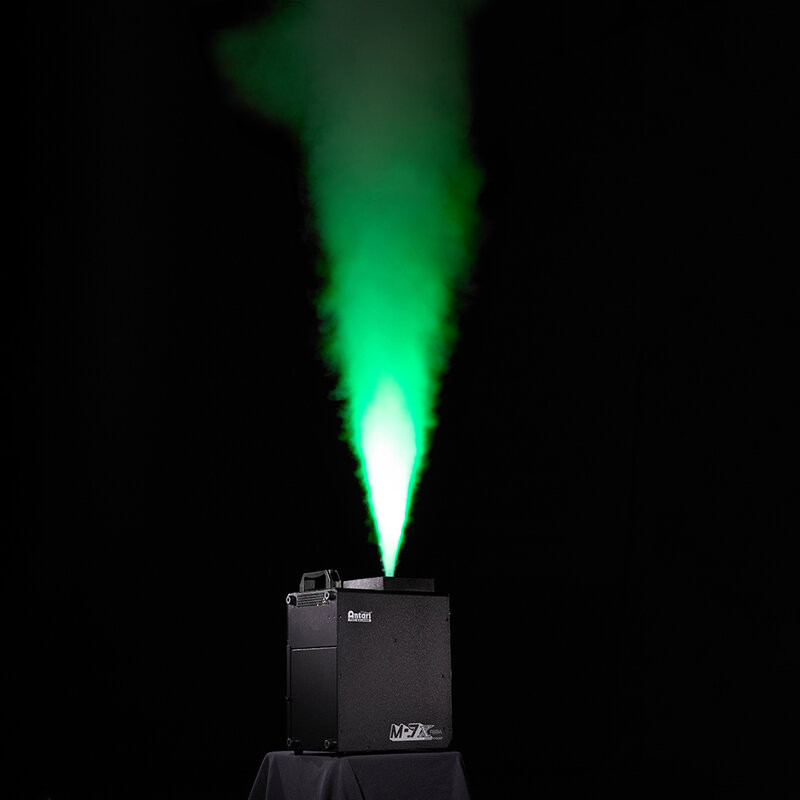

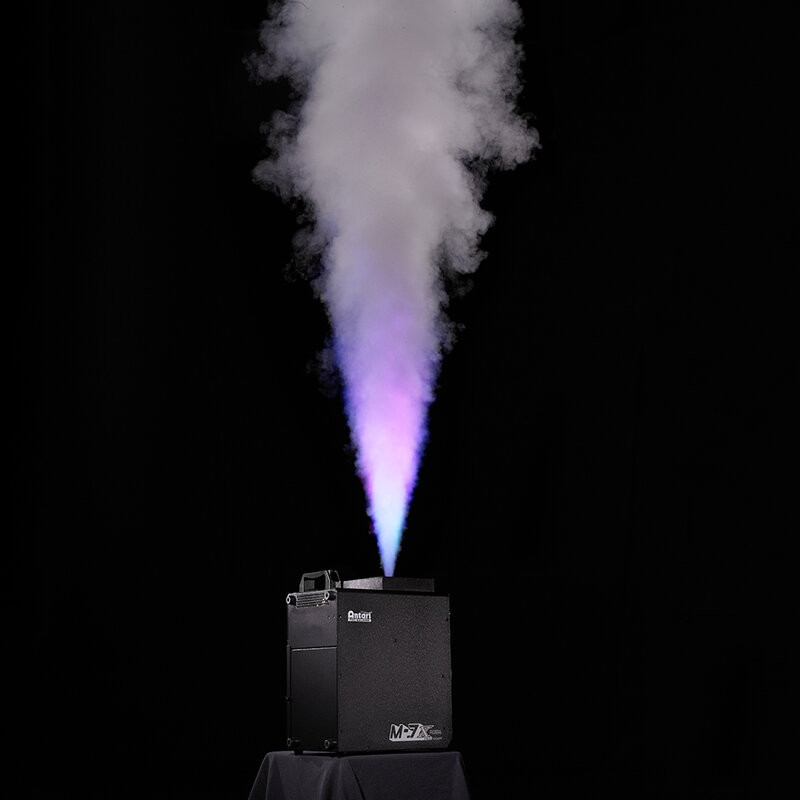

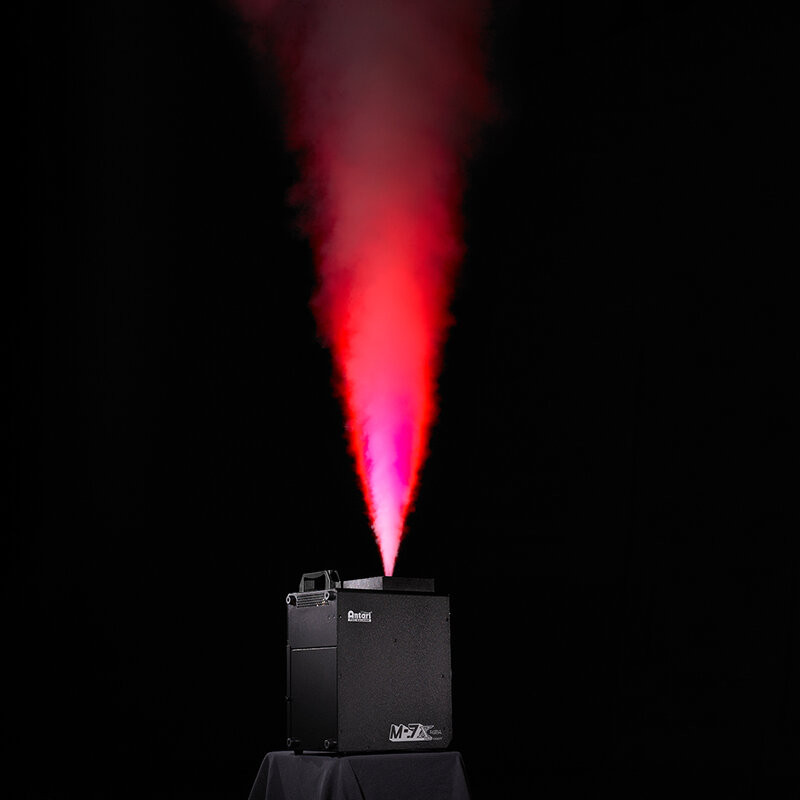

The M-7X is an update to the M-7 RGBA LED fog machine, designed for large concerts and tours. Featuring a redesigned heater, it can deliver more powerful, voluminous and much faster fog jets. It offers versatility with vertical or horizontal operation and multiple rigging positions, making it the ideal choice for dynamic stage effects.
Main feature
- Huge output volume with highly pigmented LED colors
- 22 x 3 W RGBA LEDs built-in
- LCD display with membrane button
- Master/Slave function
- Neutrik TRUE 1 connector
- Optional wireless DMX available
- New frame design for multi-angle rigging, generates fog in any orientation
- Automatic detection frequency
- Fluid reservoir compartment for easy transportation
Technical characteristics
Rated voltage:
|
220 - 240 VAC 50/60 Hz 6.5 A
|
Rated power:
|
1516 W
|
Light source:
|
22 x 3 W LED (5 x red, 6 x green, 6 x blue, 5 x amber)
|
Warm-up time:
|
7 min (approx.)
|
Fluid consumption:
|
200 mL/min
|
Fluid tank capacity:
|
2.4 L
|
Compatible fluid:
|
Antari FLC fog fluid
|
Ambient temp. range:
|
0 to 40 ℃
|
Control methods:
|
manual timer DMX512Master/Slave wireless wireless DMX (optional)
|
DMX channels:
|
9 channels
|

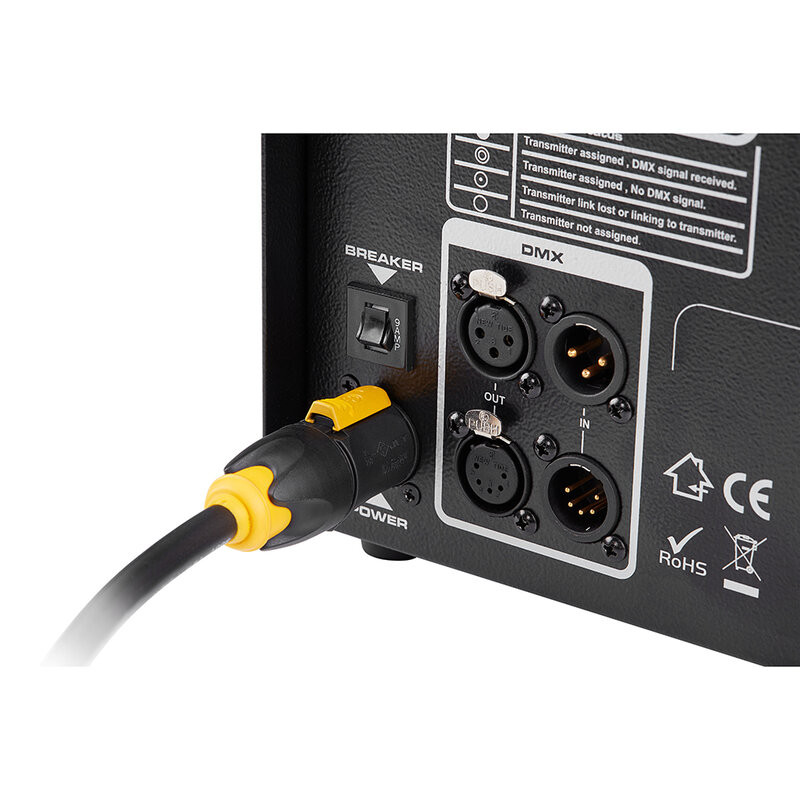

Connection:
|
Neutrik TRUE 1 (power), XLR 3-pin & 5-pin (DMX)
|
Included accessories:
|
W-2 wireless radio transmitter
|
Optional accessories:
|
TIMO-WTR-90 Wireless DMX
|
Dimensions:
|
346 x 193 x 383 mm
|
Weight:
|
14 kg
|
