Antari

Antari LCU-1SE

Smart liquid control unit
star_border star_border star_border star_border star_border
(0)

195.50 €

-22% 251.50 €

(VAT excluded)

Pay in 4 interest-free payments of 48.88 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock.
Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
195.50 €
Condition

Not available.

delivery is not available for this product.

Free shipping for orders over € 199 (within Europe)

Variants of this product

Le Maitre - 3020

163.50 €

Varitime Remote Control to manage the amount and the duration of smoke produced by GFORCE 1
Le Maitre - 3021

259.00 €

G300-Smart / GFORCE 2&3 remote control for smoke machines
Le Maitre - 1906

65.00 €

Mini Mist Ducting Hose that allows you to lead the smoke where necessary with simplicity and precision
Le Maitre - 2942

391.00 €

G300 DMX Remote Unit that allows to control the G300 smoke machine via 2 DMX channels
Le Maitre - 2939

56.50 €

Ducting adaptor for G300 smoke machines that allow to add the ducting hose where necessary
Le Maitre - 2937

95.50 €

Link Lead cable to connect the G300 smoke machine to each other 5 m

EN Instruction manual (8.18MB)

NO DESC

Documentation

Product details

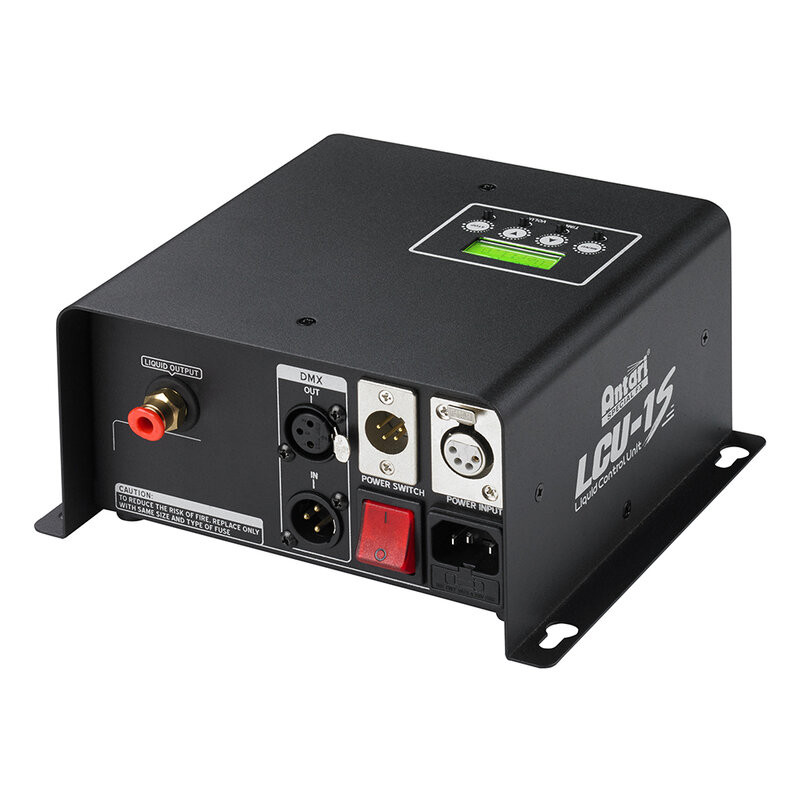

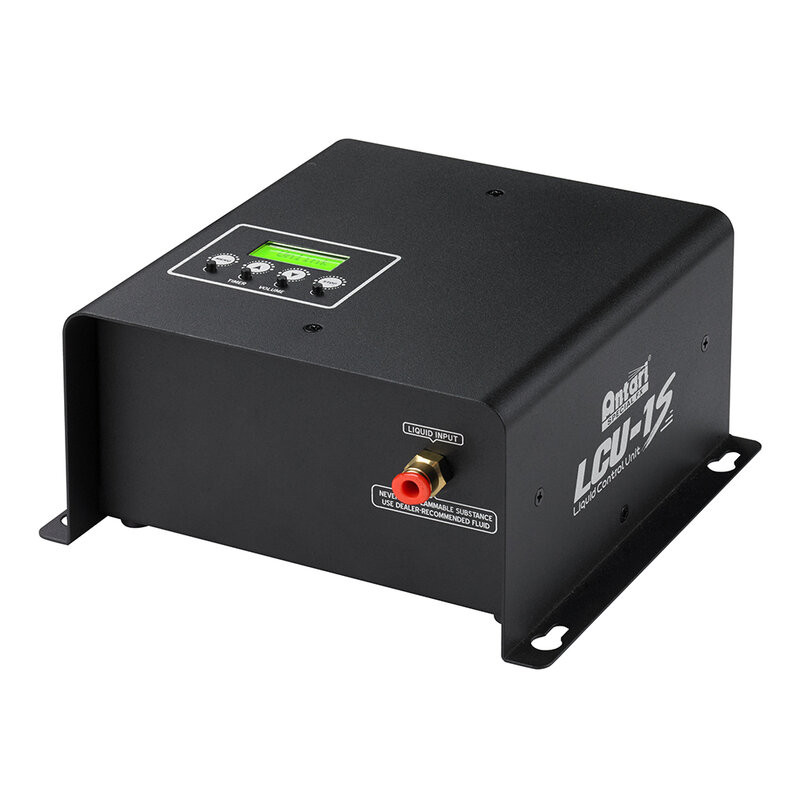

Antari LCU-1S is an intelligent liquid control unit with an LCD panel that allows users to easily read and set parameters.

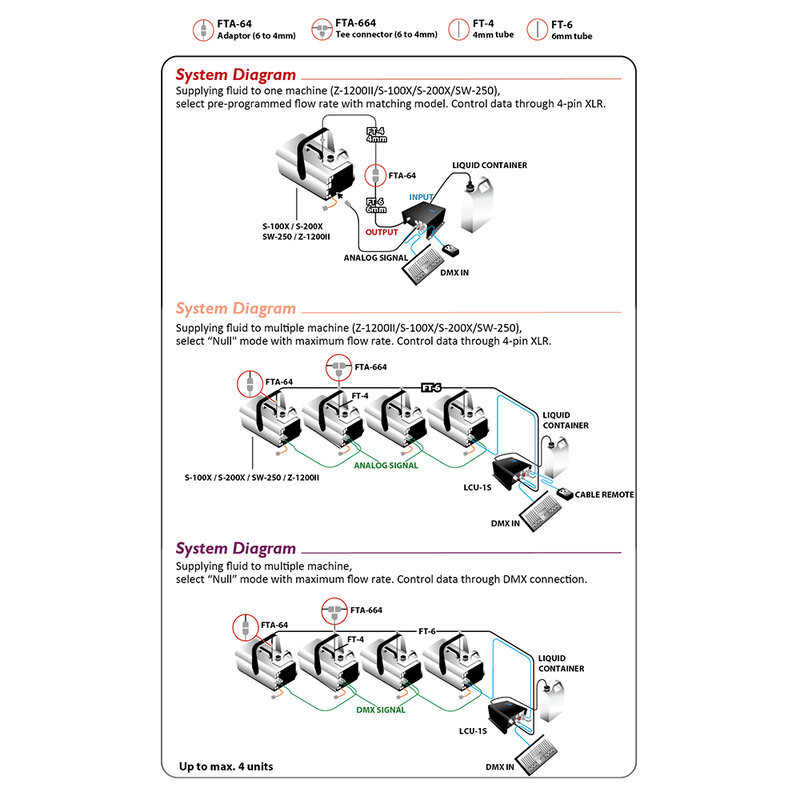

It is pre-programmed for use with the Z-1200II, S-100X, S-200X and SW-250, with a regulated flow rate to supply liquid to one unit at a time. A “Null” option offers versatility for use with any model, running the pump at 100% capacity and allowing up to four units to be supplied at once.

The LCU-1S can supply liquid up to a distance of 35 meters or a height of 25 meters and is designed to meet most remote liquid supply applications. The nominal power is 40 W and consumption is 400 mL/min. It is compatible with Antari fluids and can be controlled manually, by timer or by DMX 512 using one DMX channel.

Technical characteristics

  • Rated voltage: 220 - 240 VAC 50/60 Hz 0.18 A
  • Rated power: 40 W
  • Fluid consumption: 400 mL/min
  • Compatible fluid: Antari fluid
  • Ambient temp. range: 5 to 40 °C
  • Control: manual, timer, DMX 512
  • DMX channels: 1 channel
  • Connection: IEC (power), XLR 3-pin (DMX)
  • Optional accessories: Z-8 remote control, SC-2 remote control
  • Dimensions (L x W x H): 20.3 x 17.9 x 9.6 cm
  • Weight: 3.3 kg
