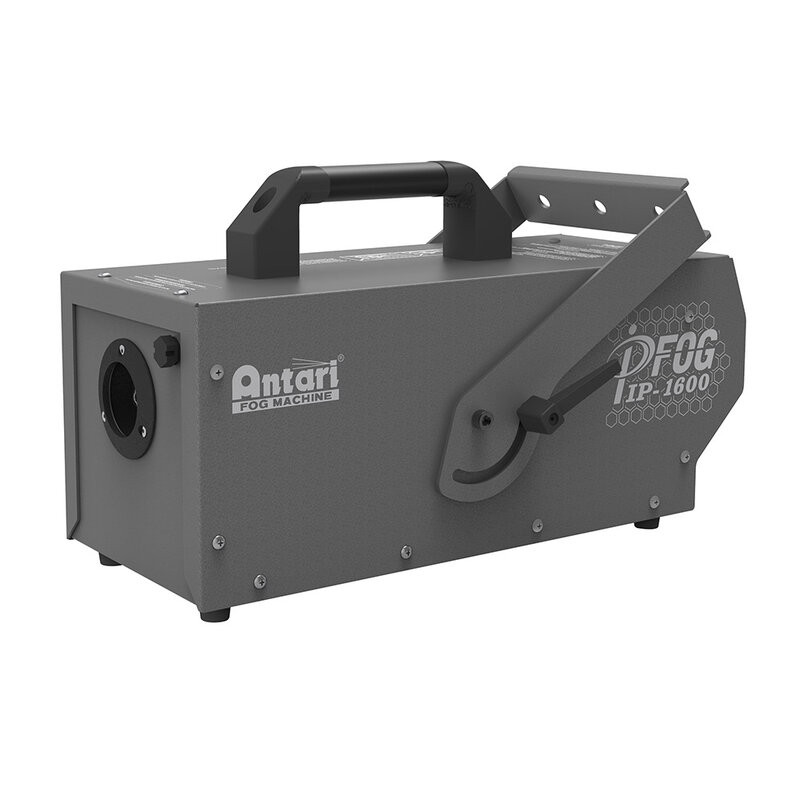

Antari IP-1600E

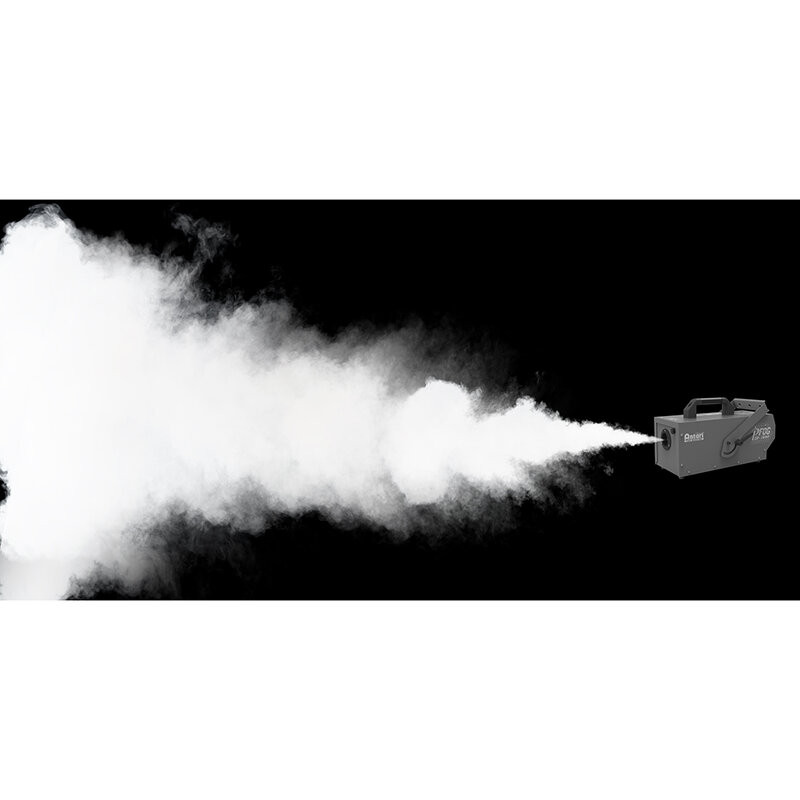

The Antari IP-1600E is a special effects machine designed to create dense and uniform fog, ideal for live shows and theatrical productions. It is known for its robustness and resistance to atmospheric agents, thanks to its IP64 protection which makes it waterproof and suitable for outdoor use.

The machine is equipped with a high pressure pump that allows for rapid fog production, with a liquid consumption of 150 ml per minute. The high capacity liquid tank allows for prolonged operation without the need for frequent refills. The IP-1600E has a liquid level detection system that warns when the tank needs to be refilled, thus ensuring continuous and uninterrupted operation.

Control can be done via DMX, manual, timer and wireless, offering great flexibility of use. In addition, the IP-1600E is equipped with an LCD display with rotary knobs for easy configuration and monitoring. The aluminum body and shock-resistant design ensure that the machine can withstand daily wear and tear without compromising the quality and reliability of the mist effect produced.

With a power of 1500 W and a warm-up time of approximately 9 minutes, the Antari IP-1600E is able to provide high performance in any environmental condition.

User benefits

• Splash-proof
• Continuous output
• Liquid level detection
• LCD display with rotary knobs
• Built-in voltage protection
• Dual Thermal Cut-Off (TCO) technology

Areas of use

• Outdoor events: concerts, festivals and fireworks
• Theatre and film productions
• Theme parks and tourist attractions
• Night clubs, discos and clubs

Technical characteristics

• Rated voltage:
  • US model: 100 - 120 V_AC 50/60 Hz 12.5 A
  • EU model: 220 - 240 V_AC 50/60 Hz 6.5 A
• Rated power: 1500 W
• Warm-up time: 9 min (approx.)
• Fluid consumption: 150 ml/min (100% output)
• Compatible fluid: antari FLG, FLR, FLY, FLZ, FLJ, FLH
• Ambient temp range: 0 to 40 °C
• Control: manual, timer, DMX512, wireless
• DMX channels: 1 channel
• Connection: XLR 5-pin connector (DMX), Neutrik powerCON connector (power)
• Included accessories: hanging bracket, W-2 wireless transmitter
• Dimension: 47.8 x 27.2 x 35.8 cm
• Weight: 12.6 kg
