Laserworld FX-700 Hydro

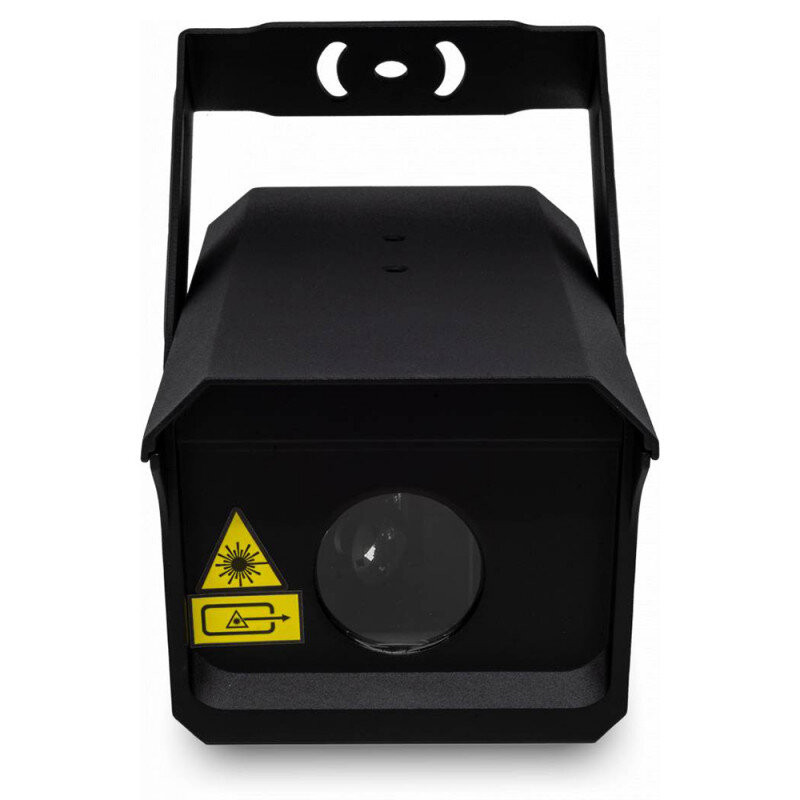

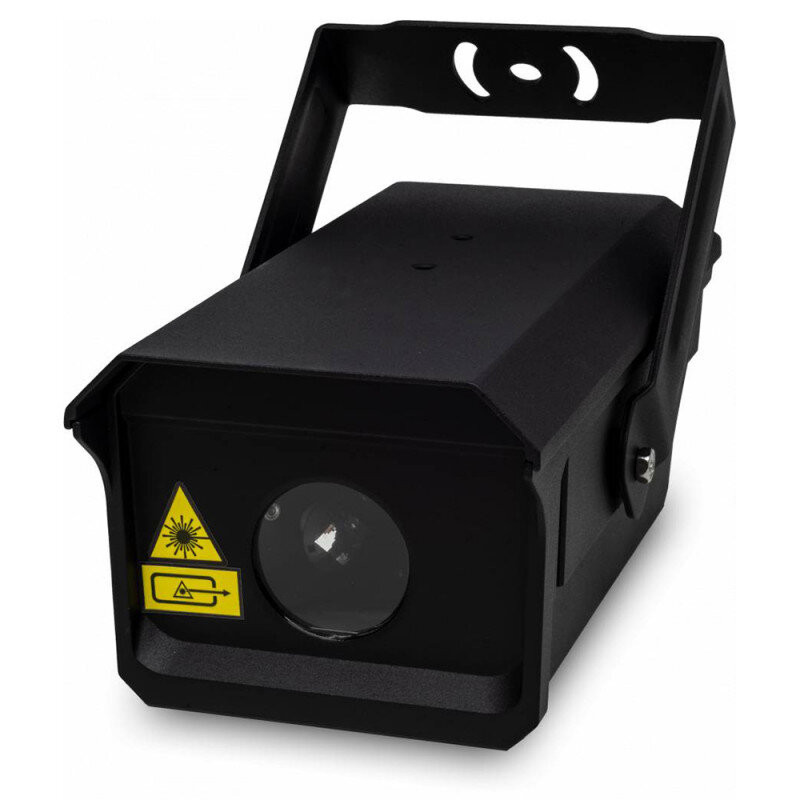

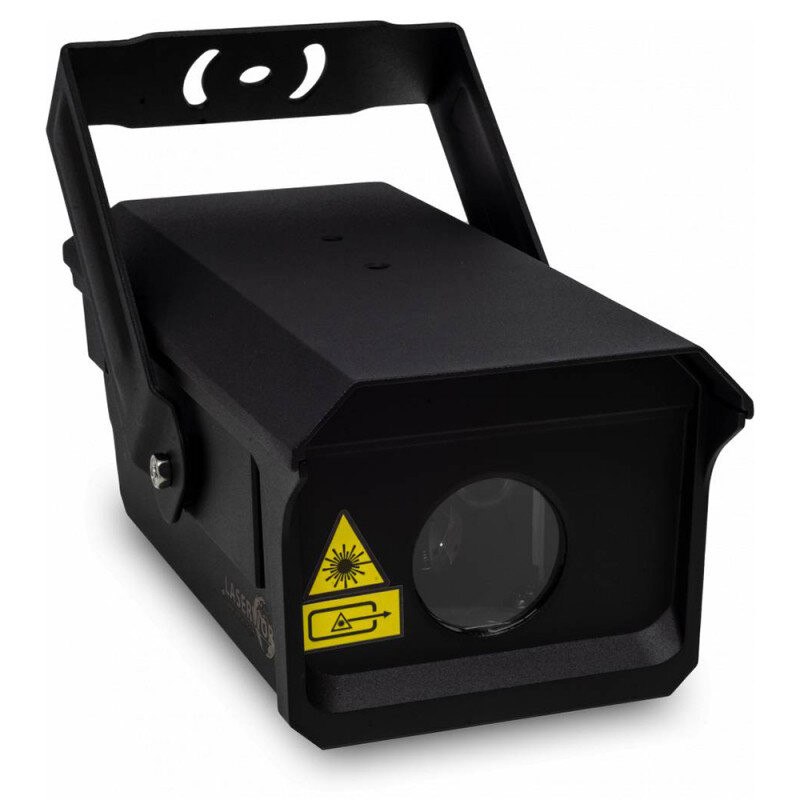

The Laserworld FX-700 Hydro is a class 3R waterproof (IP65 rating) effects laser specifically designed for outdoor use, perfect for unattended installations: no emergency stop or key switch requirements thanks to the class 3R. The laser housing is made of sturdy metal and the entire unit is passively cooled, so no fans are needed. The high power of 700 mW makes the laser points very visible.

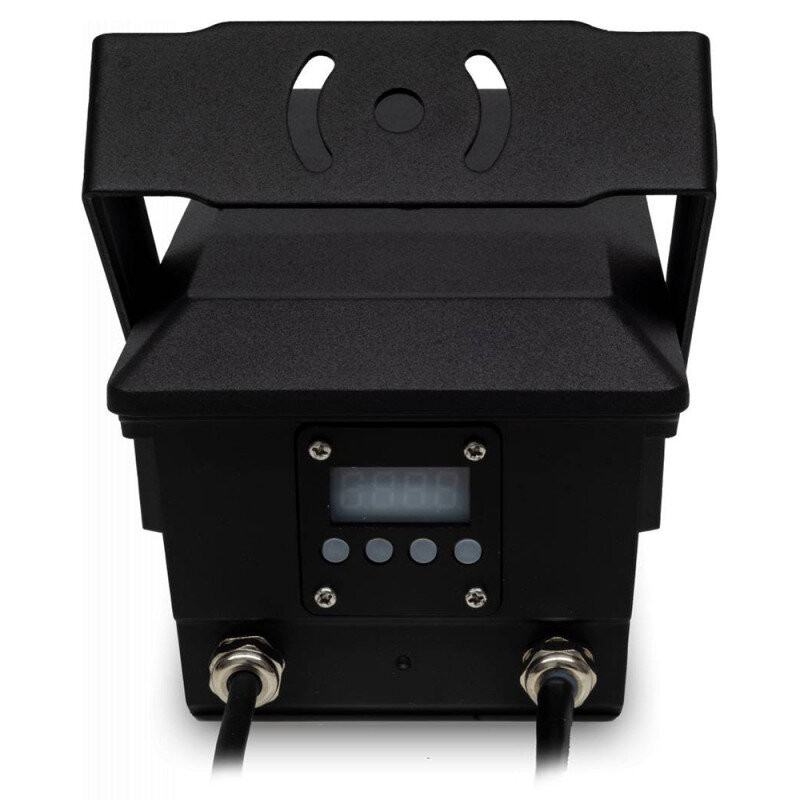

It features analogue modulated RGB laser sources that can also create white. Thanks to a deflection angle of approximately 60°, the Laserworld FX-700 Hydro can cover a large area. The multi-mirror swing unit can rotate in both directions and at different speeds, which can be controlled via the rear panel menu or DMX. Operating mode settings can be adjusted with control knobs on the rear of the unit, which are also waterproof.

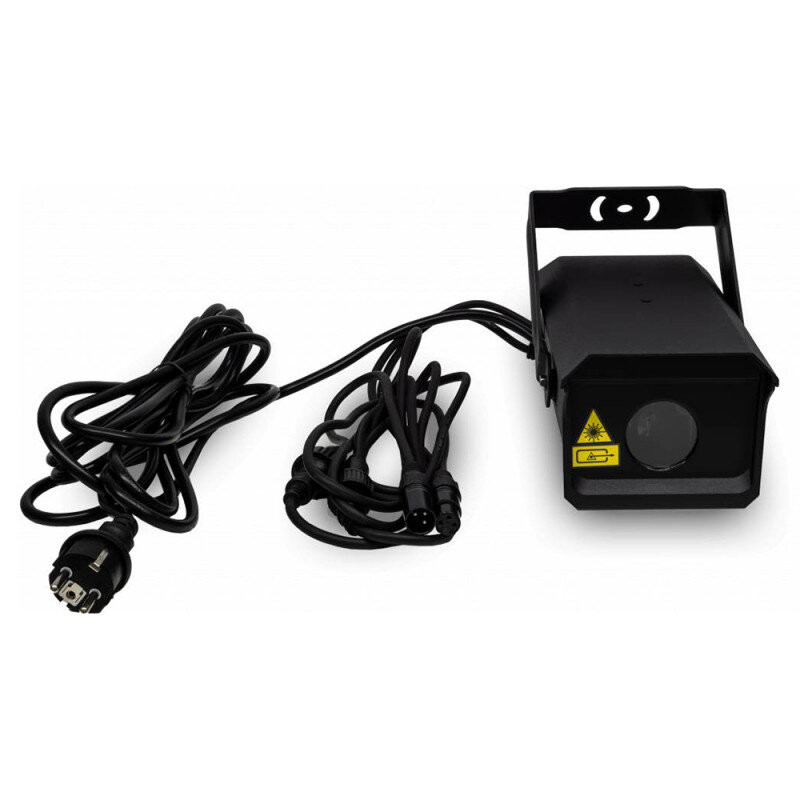

Laserworld FX-700 Hydro has 5 m long cables for connecting power, DMX in and DMX through. This helps in outdoor installations, as not only is the unit itself waterproof, but it can also be mounted so that the connections are not exposed to environmental influences.

Technical characteristics

• Guaranteed power: 700 mW
• Power red: 200 mW / 638 nm
• Power green: 220 mW / 520 nm
• Power blue: 300 mW / 450 nm
• Scanner: multi-mirror-reflection
• Laser source: diode
• Laser Class: 3R
• Operation modes: stand-alone mode, DMX control, Master/Slave
• Accessories: manual, DMX adapters, mounting-bracket
• IP rating: IP65
• Power supply: 85 - 250 V_AC 50/60 Hz
• Power consumption: 15 W
• Dimensions: 24 x 12.5 x 9.5 cm
• Weight: 2.4 kg
