Laserworld EL-60G

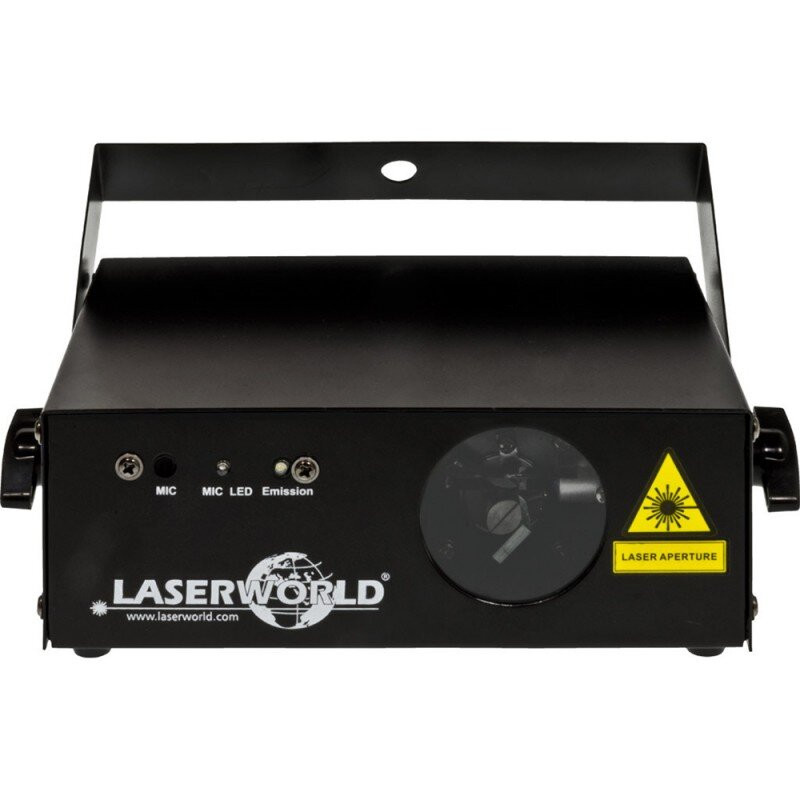

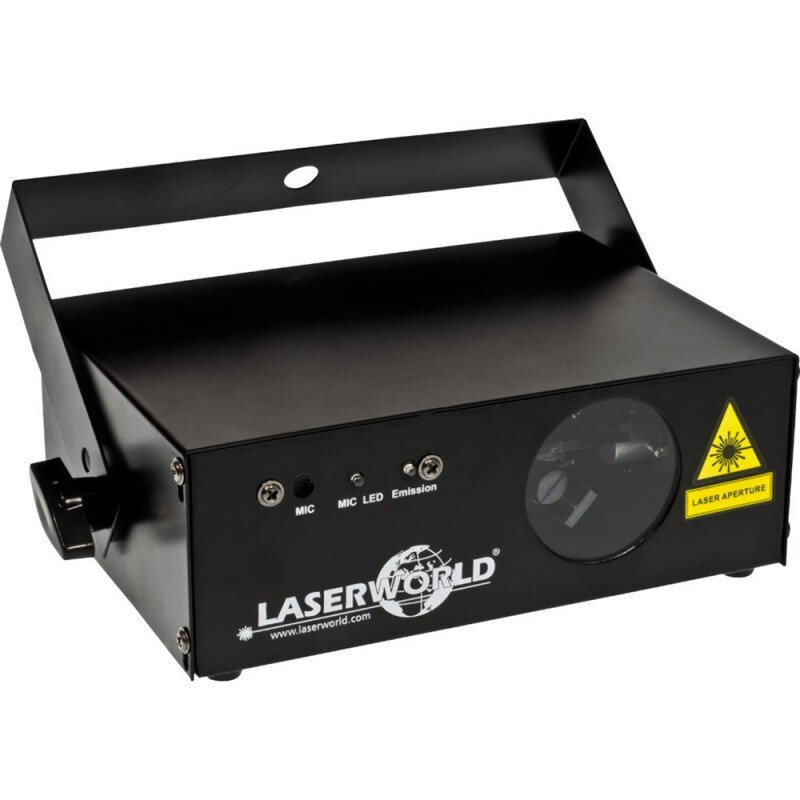

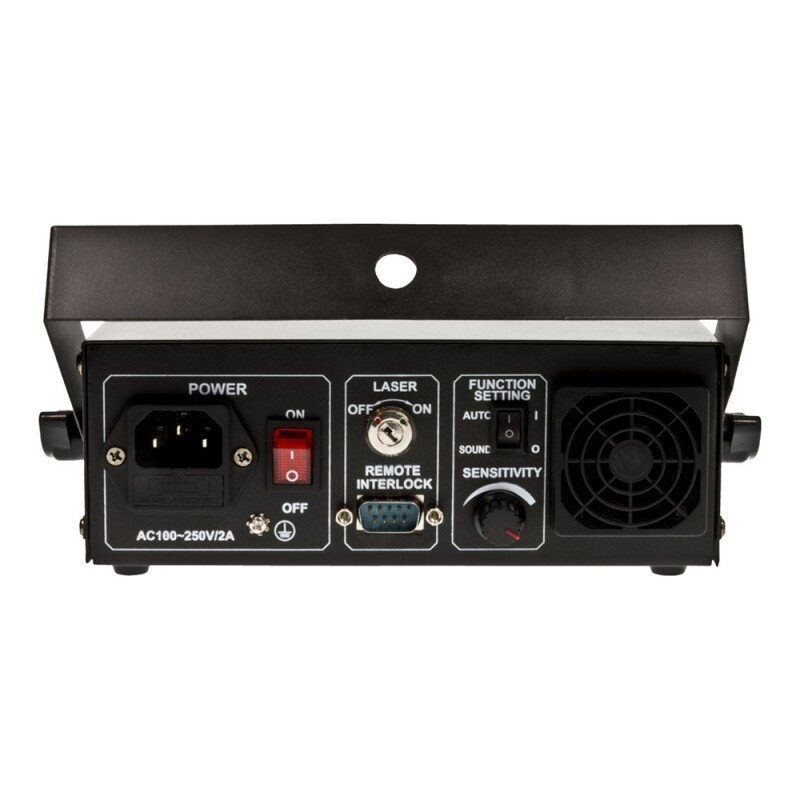

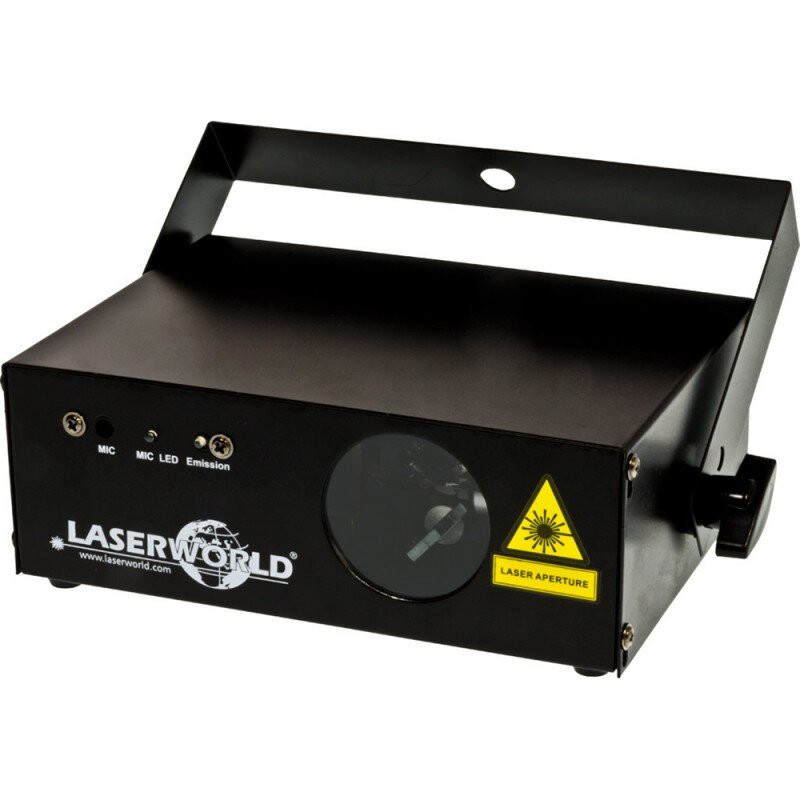

An effective and versatile laser effect designed for small and medium sized entertai nment lighting, including live concerts, discoteques, Djs, clubs, nightclubs, bars, beach parties and private parties. The Laserworld EL-60G is a green single color laser system with a total output power of up to 60mW. The green DPSS laser module with a wavelength of 532 nm ensures a high visibility and brightness. At the same time the projector has good beam specifications with a beam diameter of 3 mm and beam divergence of about 1.5 mrad with high-speed step motors, up to 2-5kpps as well as a scan angle of up to 30°. Approximately ca. 50 patterns (layers, tunnels, fences, waves, etc.) are available in the sound-to-light mode. For this mode the sensitivity of the integrated microphone can be adjusted. There is an interlock connector for safety switch as well as a key switch at the rear side of this very compact device. The Laserworld EL-60G is a very affordable solution for first-time users and in bars, small clubs, at private parties or home use.

• Total power typical: 60 mW
• Guaranteed power: 40 mW
• Power green: 40 mW / 532 nm
• Beam specifications: ca. 3 mm / 1.5 mrad
• Laser Sources: DPSS Laser
• Laser class: 3B
• Operation modes: sound-to-light, stand-alone
• Scanner: high-speed stepper motors, up to 2-5 kpps
• Scan angle max.: 30°
• Basic patterns: ca. 50 (layers, tunnels, fences, waves, etc.)
• Accessories: power cable, manual, keys, interlock
• Power supply: 85 - 250 V_AC
• Power consumption: 30 W
• Dimensions: 205 x 145 x 75 mm
• Weight: 1.4 kg
