Antari DFX-PD4E-MKII

Versatile DMX controller for the Antari DarkFX Strip 510, Strip 510IP and Spot 510IP high-power UV fixtures, 4 output channels, RDM feature set

Write a review Write a review

267.50 €

(VAT excluded)

Pay in 4 interest-free payments of 66.88 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

267.50 €

Condition

I accept the general conditions and the privacy policy.

Not available.

delivery is not available for this product.

Free shipping for orders over € 199 (within Europe)

Product details

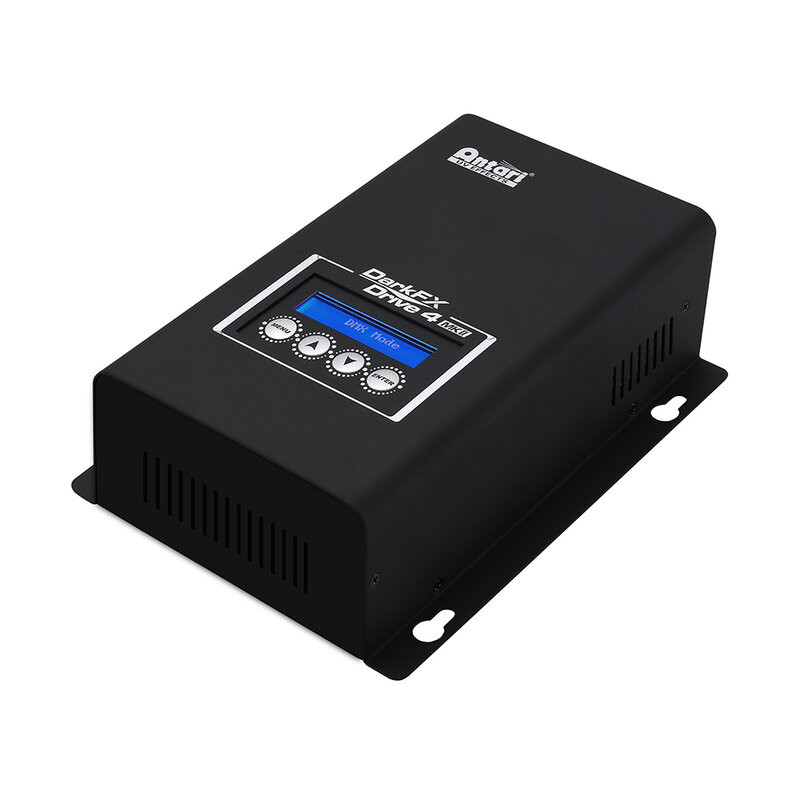

The Antari DFX-PD4E-MKII is a versatile DMX control module designed exclusively for the Antari DarkFX Strip 510, Strip 510IP and Spot 510IP high-power UV fixtures.

It offers 4 output channels, each with the ability to be controlled individually or simultaneously, which as mentioned can support up to 4 Antari DarkFX fixtures. It features RDM (Remote Device Management) functionality, which allows for advanced remote management and simplified configuration.

It features 2 x 5-pin DMX channels and Neutrik powerCON IN/OUT, dimmer, linear dimming curve, strobe effects, 2 x 16 digit control display with 4 buttons, metal chassis with surface mounting option and a universal multi-voltage auto-switching power supply (100 - 240 V_AC 50/60 Hz).

IP20 protection rating.

Technical characteristics

Input voltage: 100 - 240 V_AC 50/60 Hz
Rated power: 100 W
Refresh rate: 600 Hz
Output current: constant 500 mA max. per channel
Control option: RDM, DMX 512, manual
DMX Channels: 1, 2
Operation: 2 x 16 digit display with 4 buttons
Fixture output: 4 terminal block
Power connection: Neutrik powerCON IN/through
DMX data connection: 5-pin XLR
Housing: metal
Protection rating: IP-20 indoor use only
Dimensions (L x W x H): 21.1 x 16.7 x 7 cm
Dry weight: 1.62 kg
