Laserworld CS-6000RGB

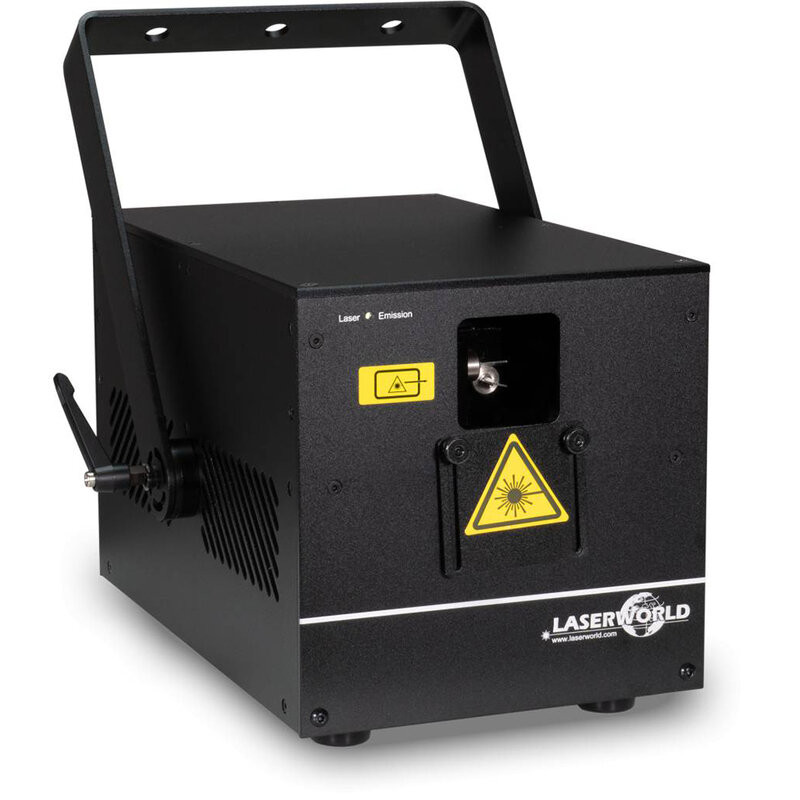

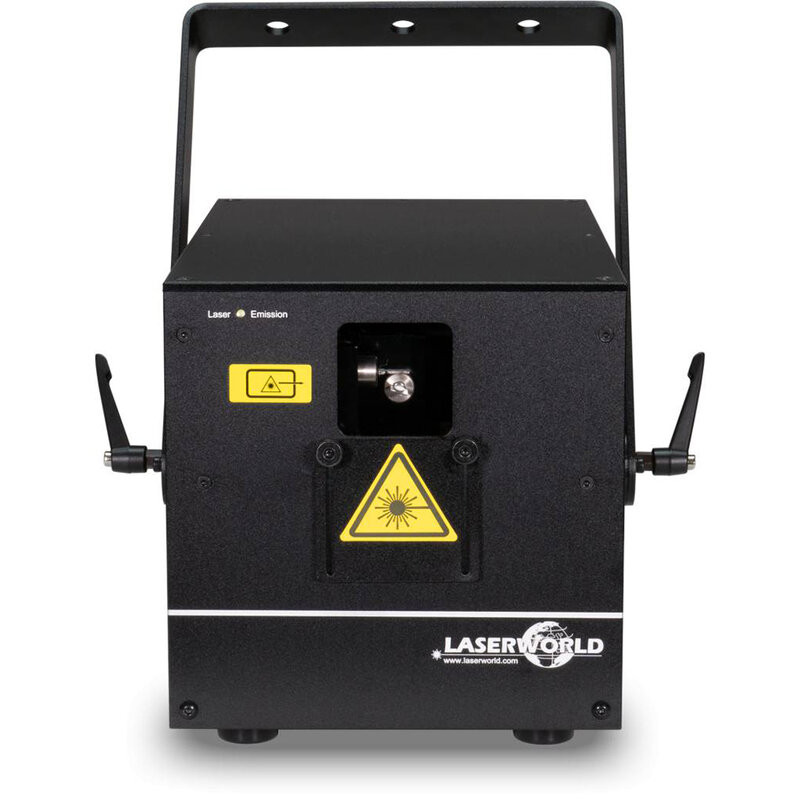

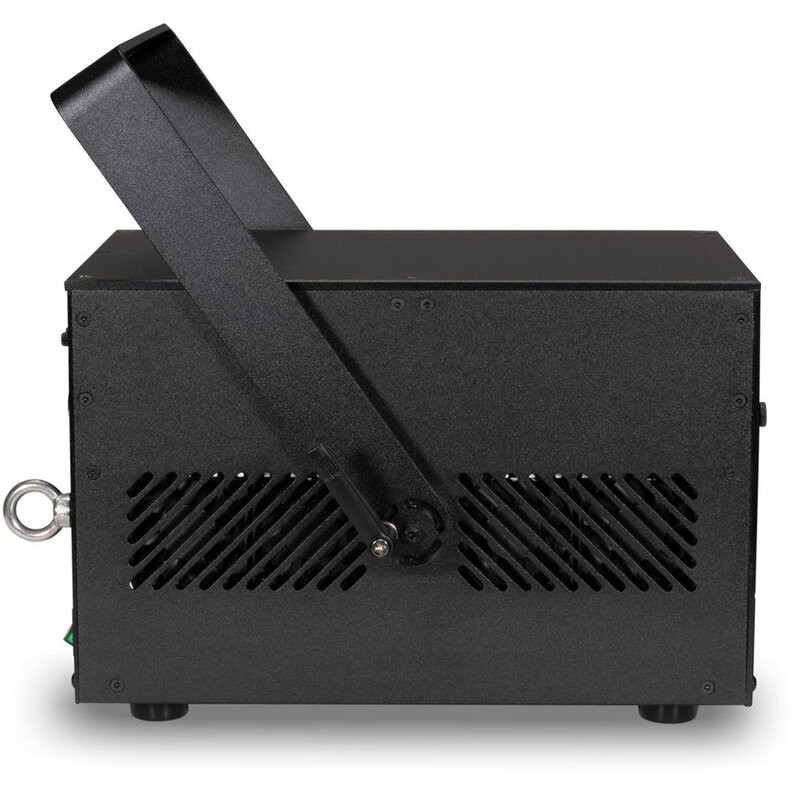

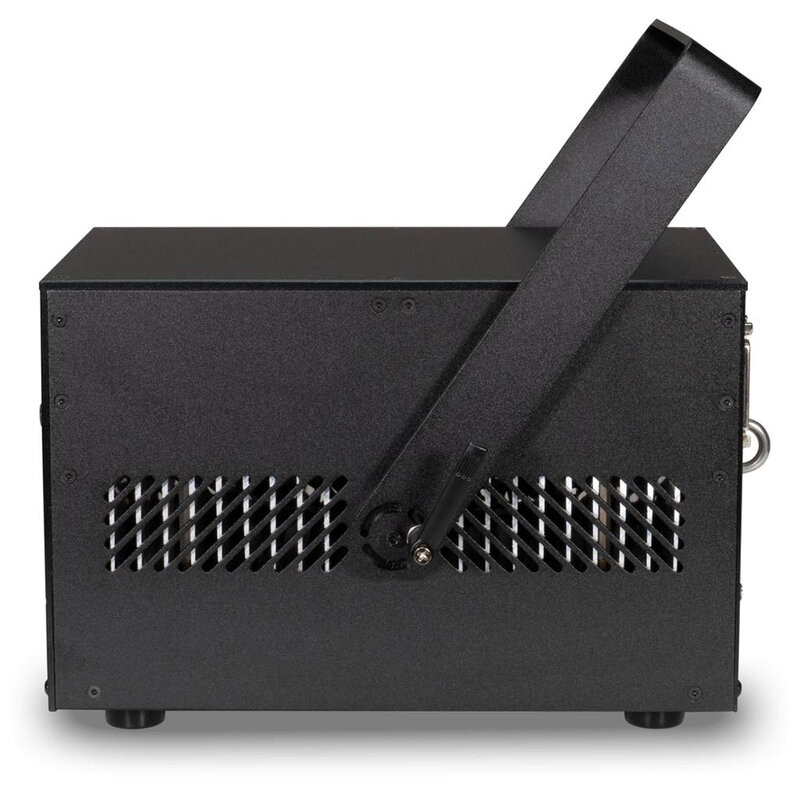

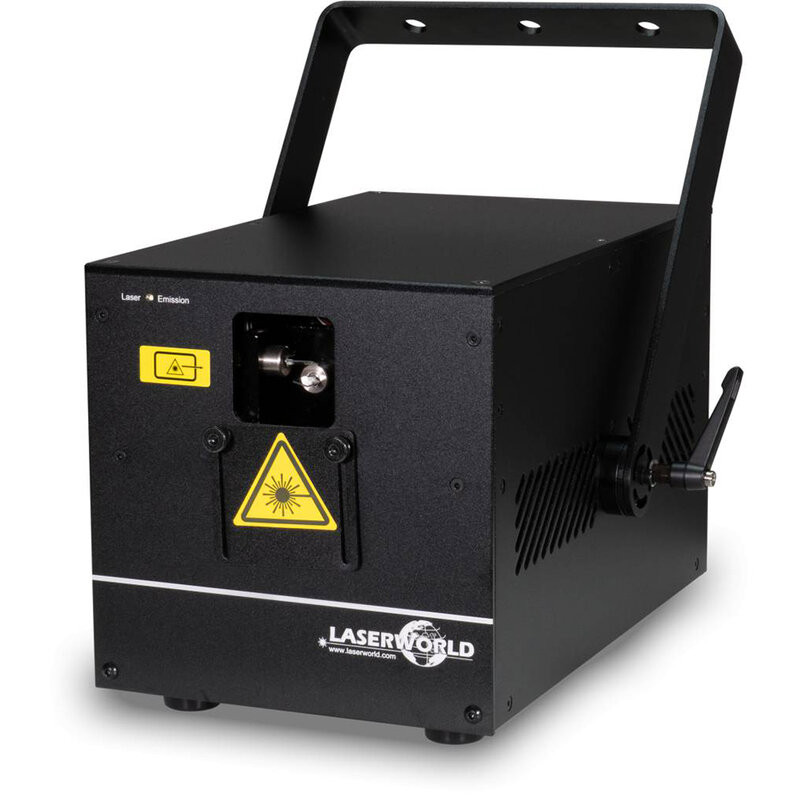

Show laser projector with a new compact, lightweight and solid bracket housing that allows for different mounting positions: suspended or vertical installation is possible, ideal for mobile DJs and temporary laser shows, but also for fixed installations on a truss or ceiling.

The Laserworld CS-6000RGB is a pure diode RGB multicolor laser system with analog modulation with a guaranteed output power of 6000 mW. The red laser source has a power of 1000 mW / 638 nm, the green one 2000 mW / 520 nm and the royal blue one 3000 mW / 450 nm. The laser sources ensure brilliant colors and powerful laser beams. The projector has very good beam specifications with approx. 5 mm / 1.2 mrad. The galvo system has a scanning speed of up to 30 kpps at 8°.

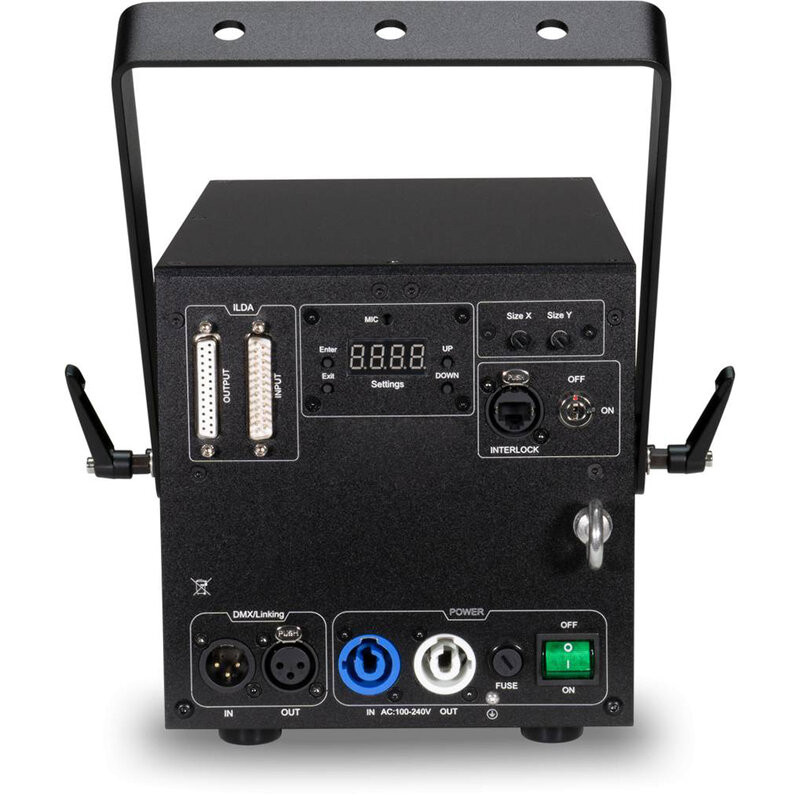

The pattern size can be set via two rotary buttons (X and Y axis) on the rear side of the housing and the microphone sensitivity adjusted via the integrated display. There is no air flow in the optical compartment, the temperature is regulated via a separate compartment with cooling fins; this reduces maintenance and cleaning requirements to a minimum.

The Laserworld CS-6000RGB is computer controllable via a professional ILDA interface; this way, customized or pre-programmed laser shows, logos, texts or your own graphics and animations can be shown in combination with a laser control software.

Via DMX, both in automatic mode and in sound / light mode, around 130 patterns (layers, tunnels, fences, waves, etc.) can be projected in different colors and at different speeds. If automatic mode is active, the pre-programmed patterns are executed without assistance and in sound / light mode the laser system projects according to the sound. Master / Slave mode is also available. Laser shows from the same series (Slave projectors), connected via DMX to a Master projector, project the same patterns as the Master projector.

Safety features such as a key switch, an interlock connector and an ON/OFF switch are also present.

The Laserworld CS-6000RGB is ideal for basic to semi-professional applications and is perfectly suited for medium and large bars, clubs and discos as well as for mobile DJs, private use and any other party venues.

User benefits

• Compact and lightweight in relation to the power
• Good scanning speed and very good beam specifications
• Control possibility via professional ILDA interface
• 130 pre-programmed patterns
• Minimum maintenance

Areas of use

• Medium and large bars, clubs and discos
• Private events (weddings, anniversaries)
• Mobile DJs

Technical characteristics

• Guaranteed power: 6000 mW
• Power red: 1000 mW / 638 nm
• Power green: 2000 mW / 520 nm
• Power blue: 3000 mW / 450 nm
• Laser Class: 4
• Beam specifications: ca. 5 mm / 1.2 mrad
• Scanner: 30 kpps @ 8°
• Max. scan angle: 40°
• Laser source: diode
• Operation modes: stand-alone, sound-to-light, DMX, ILDA, Master/Slave
• Basic patterns: ca. 130 (layers, tunnels, fences, waves, etc.)
• Power supply: 85 - 250 V_AC 50/60 Hz
• Power consumption: 100 W
• Dimensions: 28.5 x 18 x 19 cm
• Weight: 4 kg
• What's in the box:
  • CS-6000RGB
  • power cable
  • manual
  • interlock, key
