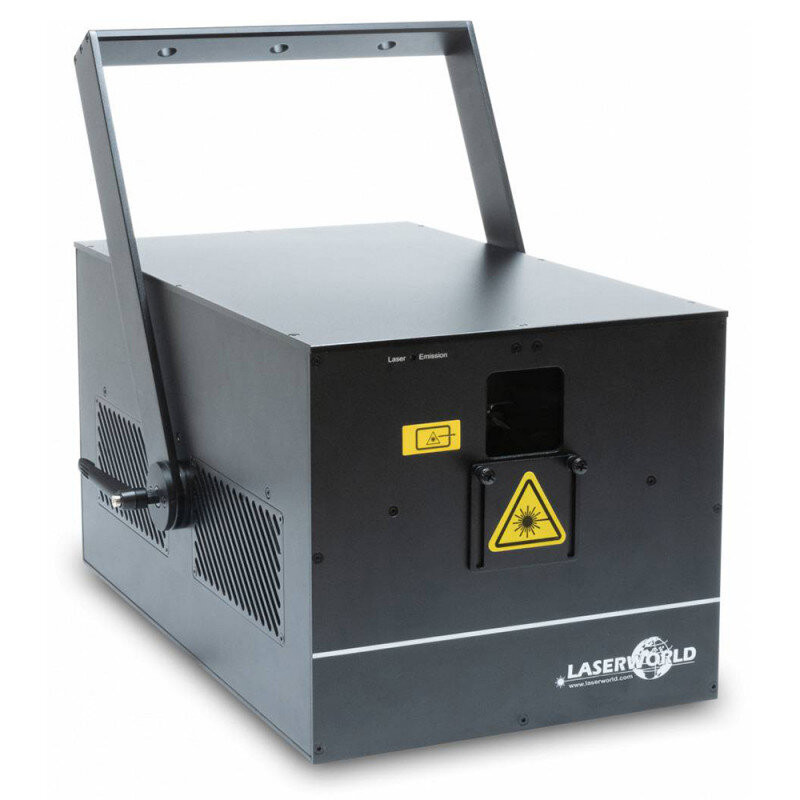

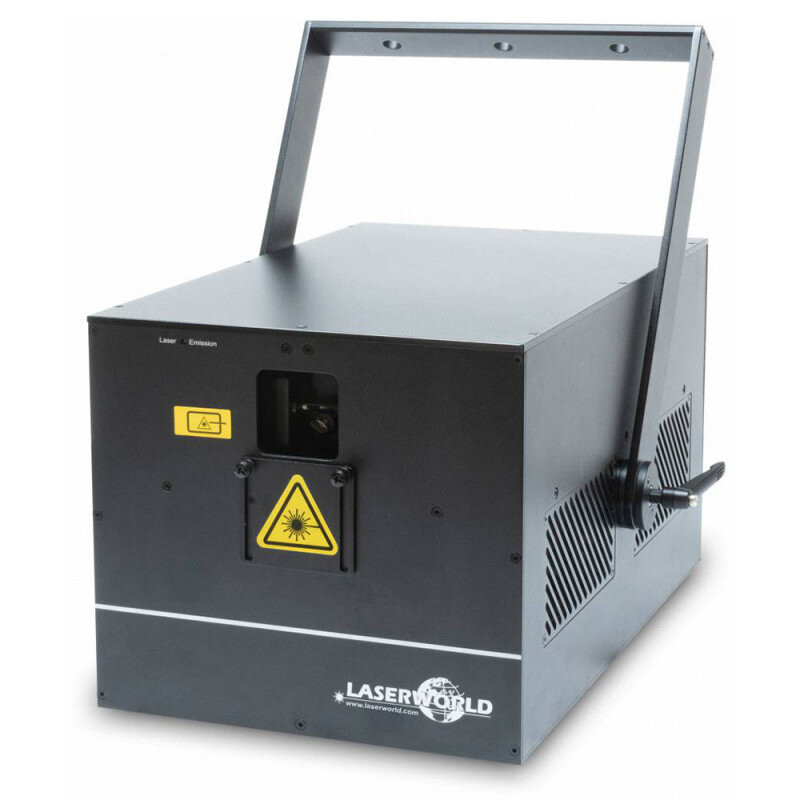

Laserworld CS-24.000RGB FX

A powerful 22,000 mW pure diode RGB semi-professional laser with analog modulation with a basic graphics at 28 kpps @ 8° ILDA scanner, capable of intense standard laser effects such as beams, waves and tunnels (130 different types!) but also base graphics that can be combined with the built-in grating effects: line grating, radial grating e burst grating.

The red laser source has an output power of 5000 mW / 638 nm, the green one 5200 mW / 520 nm and the true blue laser source 12,000 mW / 450 nm. The projector has also a good beam specifications with a diameter of 6 mm and a divergence of 1.4 mrad.

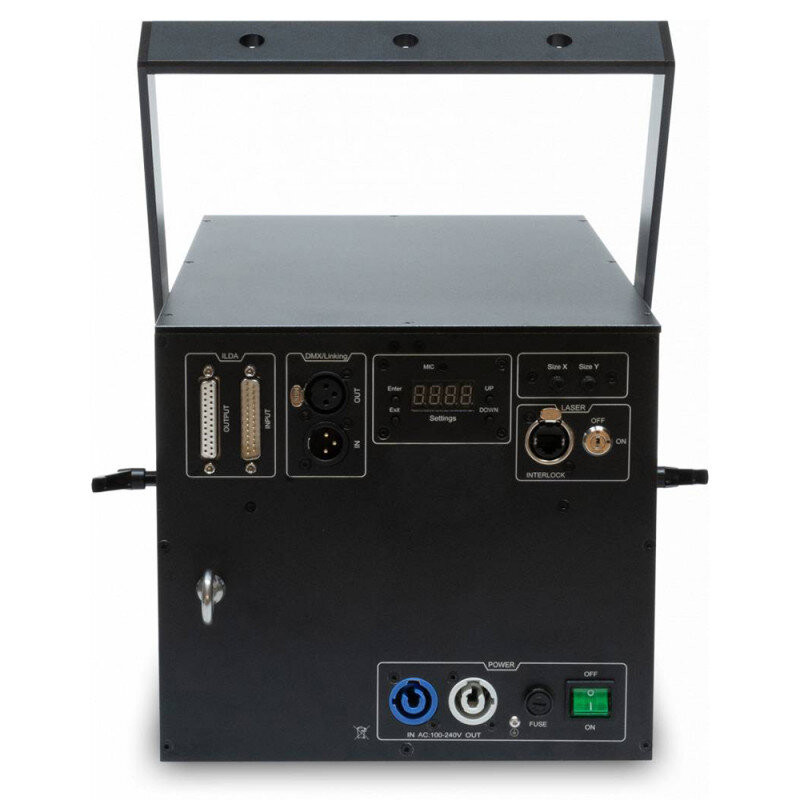

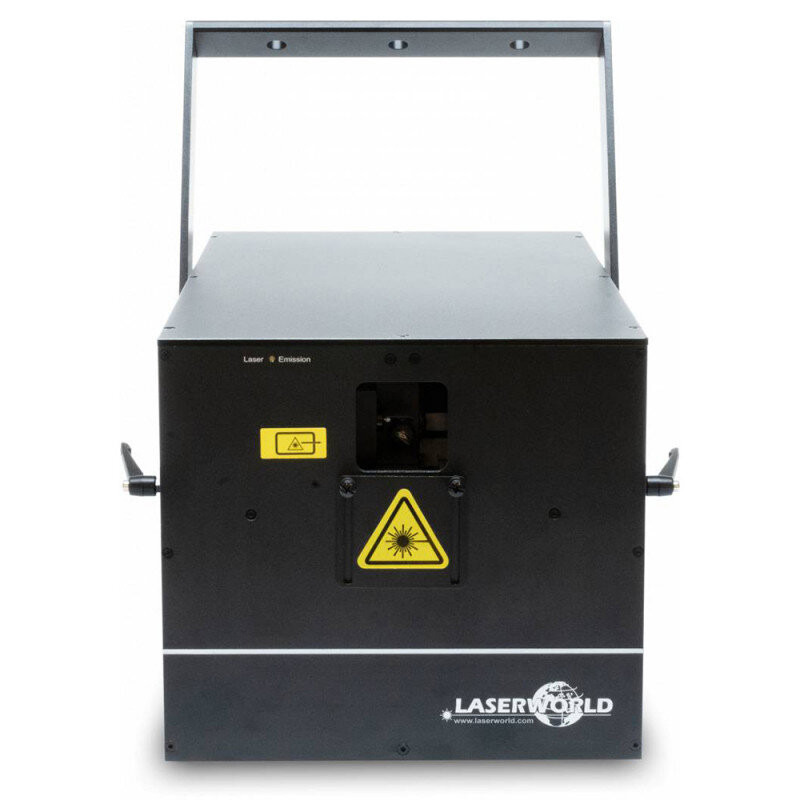

This laser features Plug & Play, sound-to-light and stand-alone modes, DMX control (Master/Slave operation possible), so it can be controlled with the rest of your lighting system, but it also has an ILDA port for computer control. It has a laser beam masking plate on the front panel and a 360° mounting bracket. There is no airflow in the optical compartment, the temperature is regulated through the separate cooling fin compartment: this minimizes maintenance and cleaning requirements.
The Laserworld CS-24000RGB FX is ideal for semi-professional applications and is suitable for installation in large discotheques, any other festival venue and outdoor events.

Main features

• 22.2 W pure diode RGB laser system
• Three additional grating effects: Line, Radial and Burst
• DMX controllable, Master/Slave operation possible
• Full diode laser system
• Computer controllable via ILDA
• Plug & Play: sound-to-light and stand-alone modes
• Capable of basic graphics - 28 kpps @ 8° ILDA, galvo system, switchable effects grating wheel scanners
• Full color with analog modulation
• Front panel laser beam masking plate
• 360° mounting bracket

Technical details

• Total power: 22,200 mW
• Guaranteed power: 22,000 mW
• Power red: 5000 mW / 638 nm
• Power green: 5200 mW / 520 nm
• Power blue: 12,000 mW / 450 nm
• Beam specifications: ca. 6 mm / 1.4 mrad
• Scanner: 28 kpps @ 8° ILDA, galvo system, switchable effects grating wheel
• Max. scan angle: 40°, up to 90° with effects gratings
• Laser source: diode
• Laser class: 4
• Operation modes: stand-alone, sound-to-light, DMX, ILDA, Master/Slave, grating
• Basic patterns: ca. 130 (layers, tunnels, fences, waves, etc.), effects gratings
• Accessories: power cable, manual, interlock, key
• IP rating: IP4X
• Power supply: 85 - 250 V_AC
• Power consumption: 400 W
• Dimensions: 400 x 240 x 230 mm
• Weight: 19 kg
