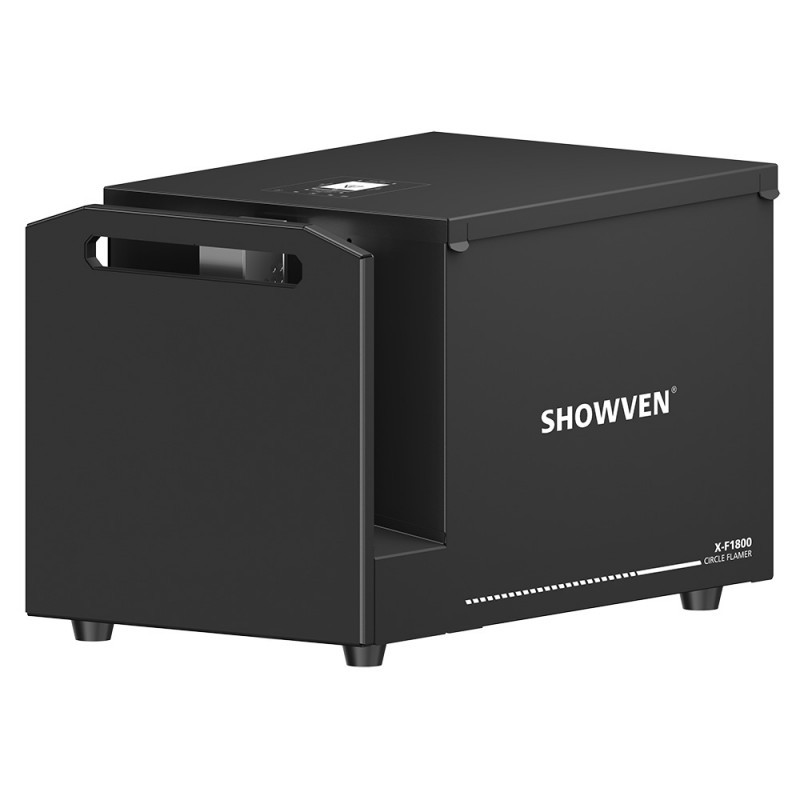

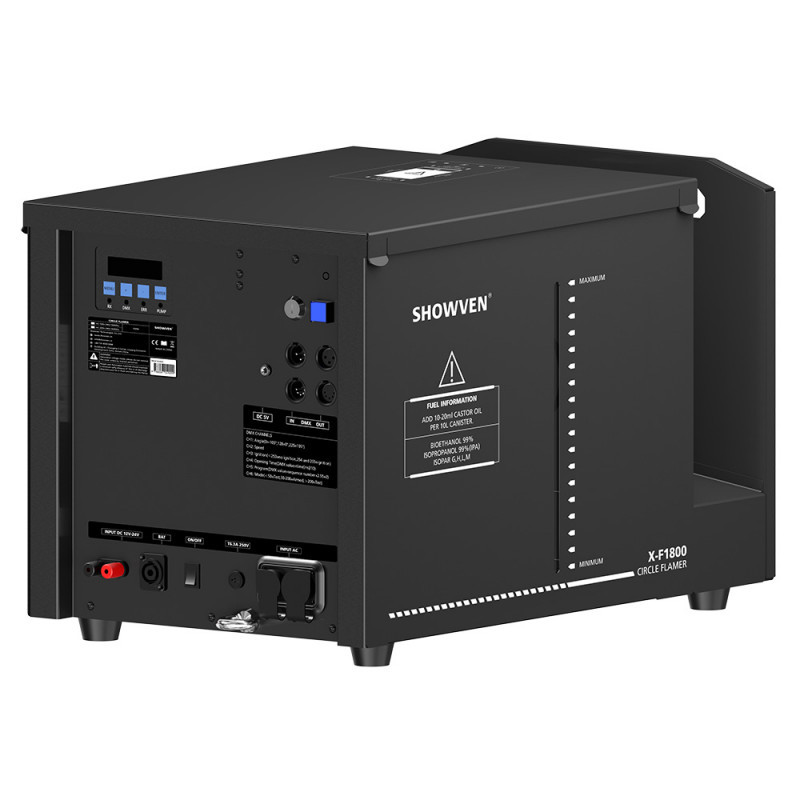

Circle Flamer X-F1800 is a fluid flame effects machine with 210° rotation angles and a high-precision swivel head, which allows for fast and accurate bursts. The flames reach a height of 8-10 m and feature 88 preset flame effect sequences, all easily achieved with the original Showen host controller, DMX console or firework ignition system.
Safety lock with switchable test mode and double solenoid valve design ensure more safety. Circle Flamer X-F1800 is equipped with a signal interface for the ignition system, which is compatible with that of fireworks. It is easier to program Circle Flamer X-F1800 when combined with original SHOWVEN ZK6200 / 6300 host controller.
Main features

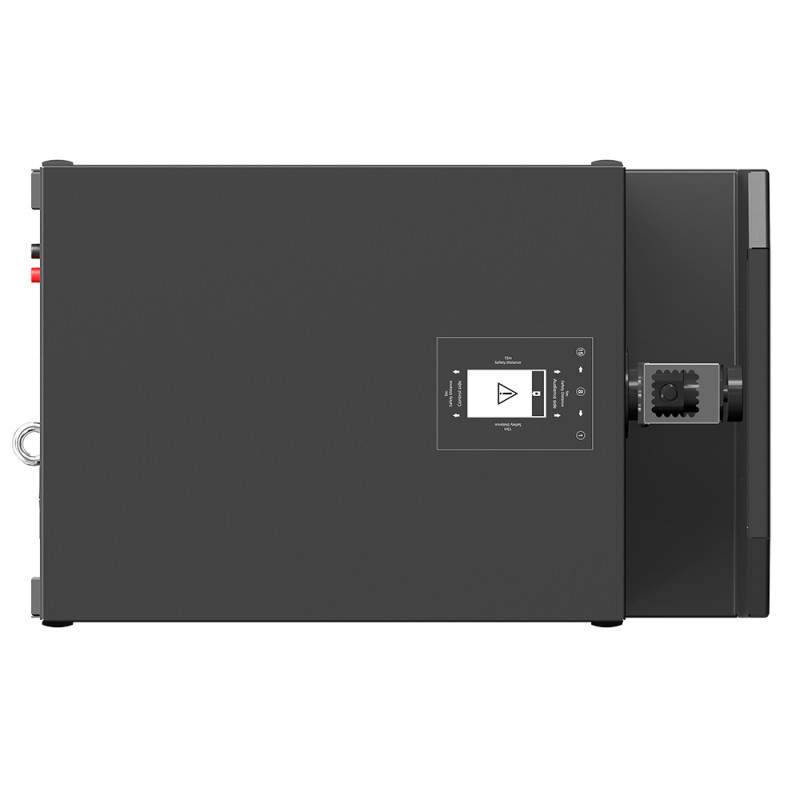

- High-accuracy rotate head system allows for fast and precise flame bursts
- High performance nozzle, reliable and durable
- Double electromagnetic valves design for additional safety
- Compact pumping system, ensure compact machine design
- Multi safety design: pressure monitoring, safety warning, no consumable alarm, failure warning etc.
- 88 types of default flame effects combination sequences, easy operation
- Fitted with igniter signal interface, can be triggered by fireworks firing system
- Wireless DMX function, compatible with almost all DMX console on the market
- Easy effects control with Showven host controller
Technical characteristics
Rotate angle |
210° |
Flame height |
up to 10 m (no wind) |
Power |
350 W |
Voltage |
100 - 240 VAC 50/60 Hz |

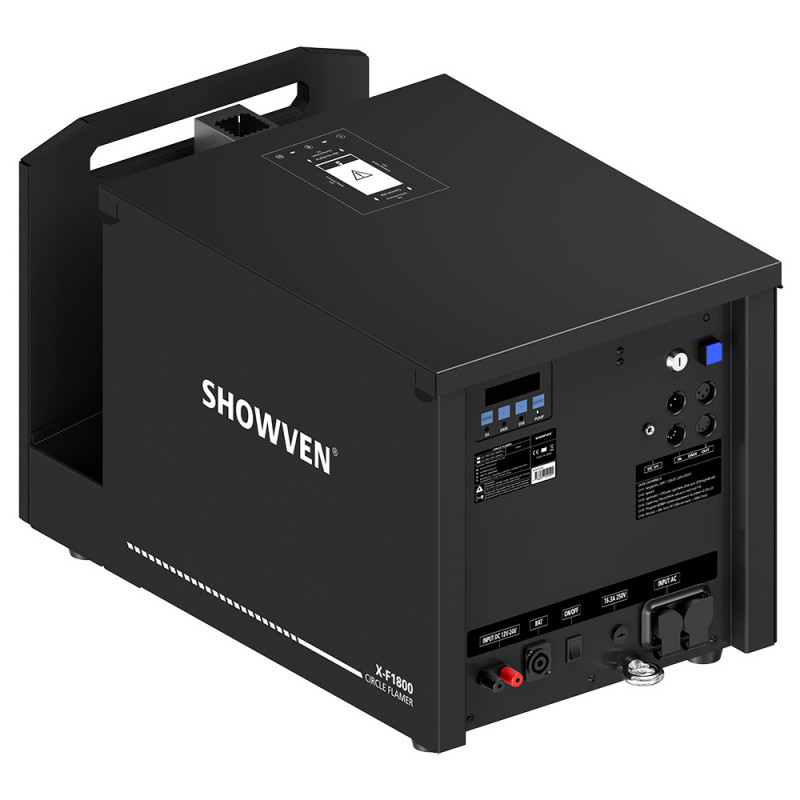

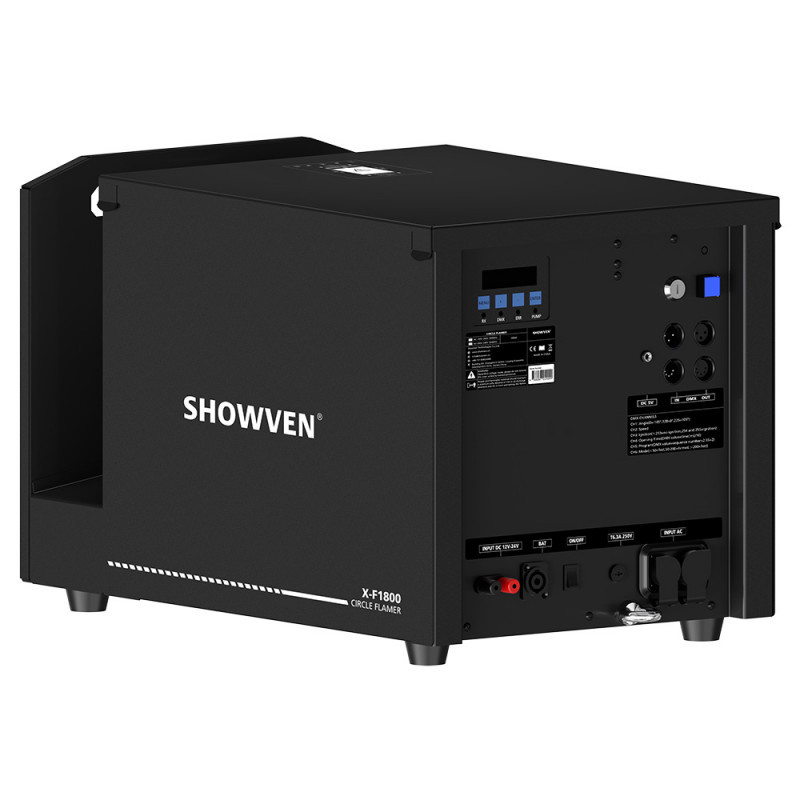

Interface |
double DMX interface; 9 - 60 V fireworks igniter signal port |
Control |
standard DMX |
Fuel |
Isopropanol; Isopar G/H/L/M |

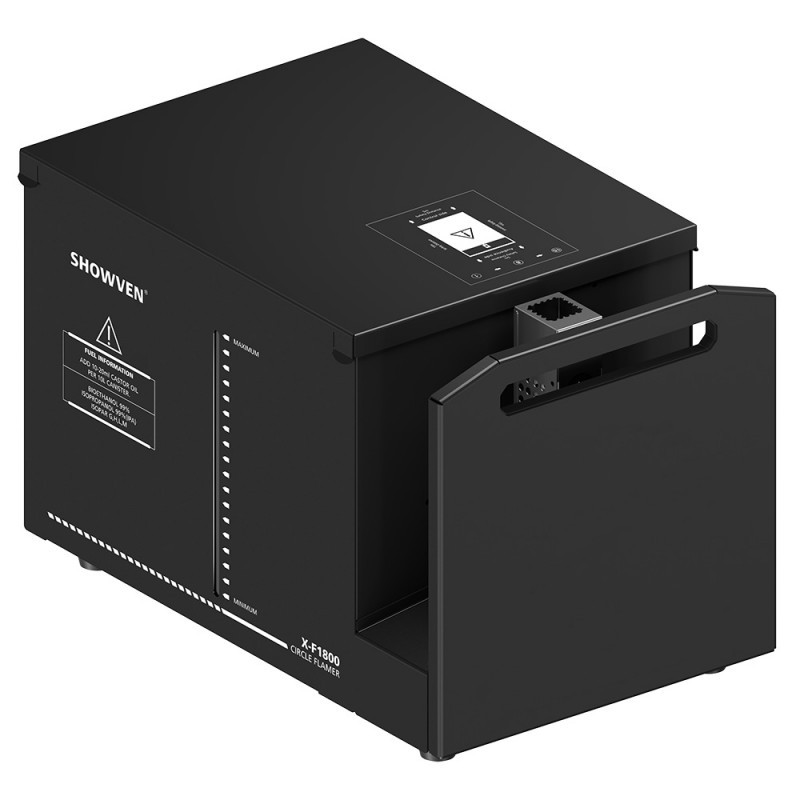

Fuel bottle capacity |
10 L |
Fuel consumption |
60 mL/s |
Dimensions |
590 x 360 x 370 mm |
Weight (no fuel) |
30 kg |
