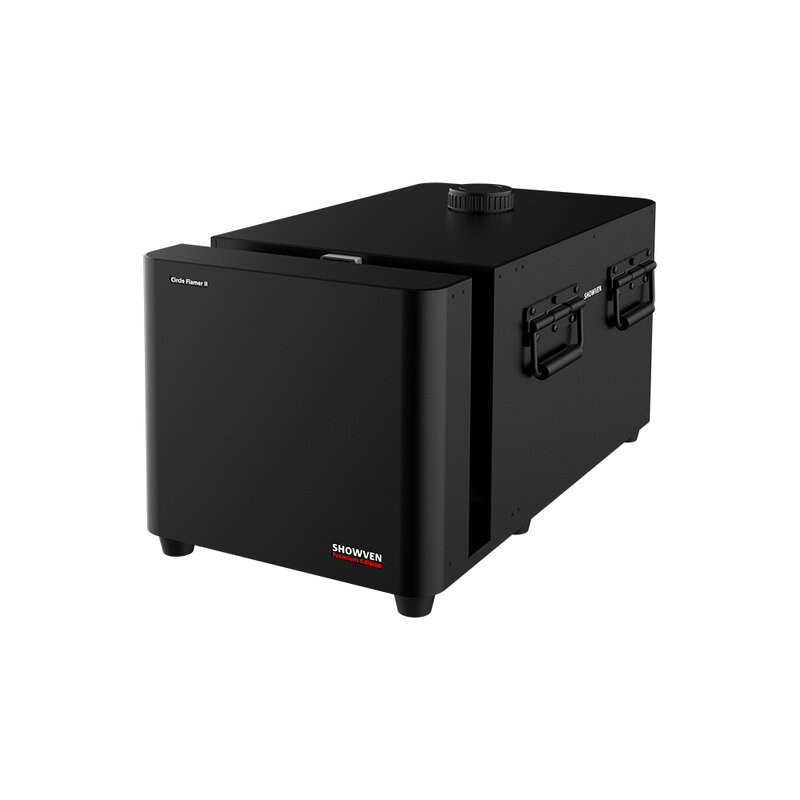

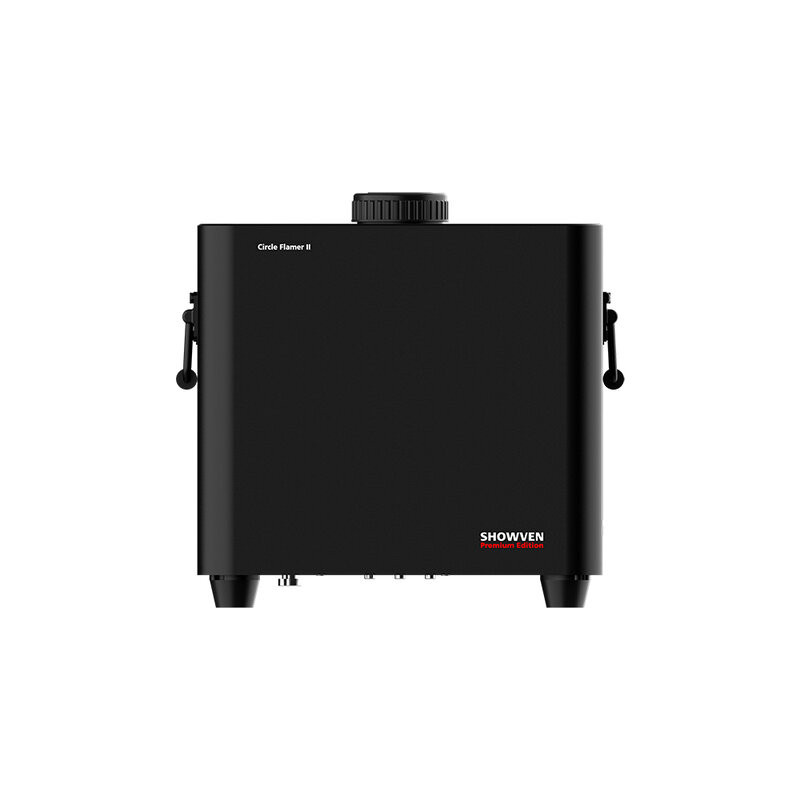

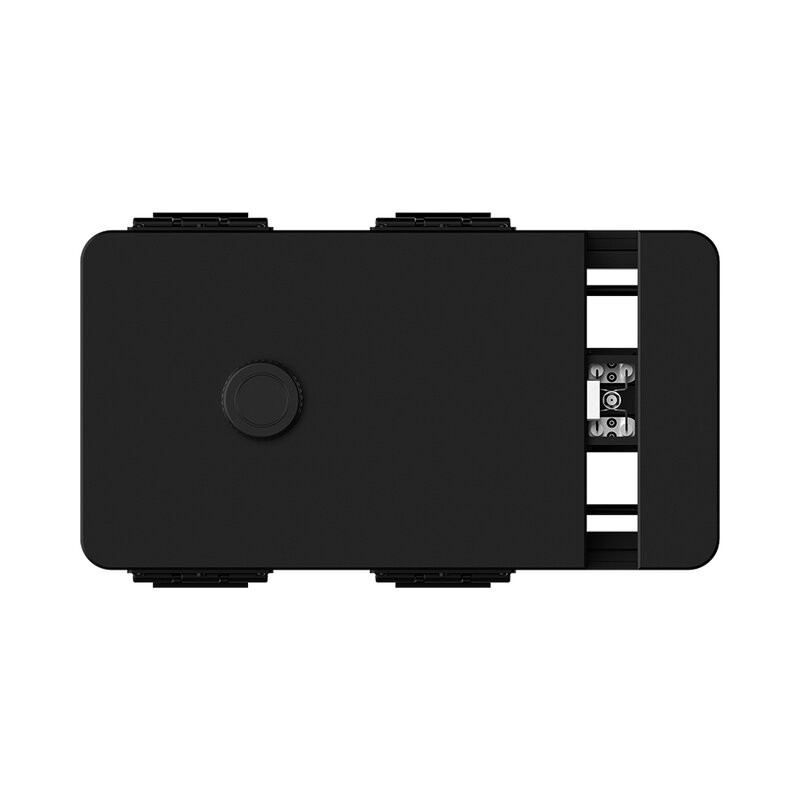

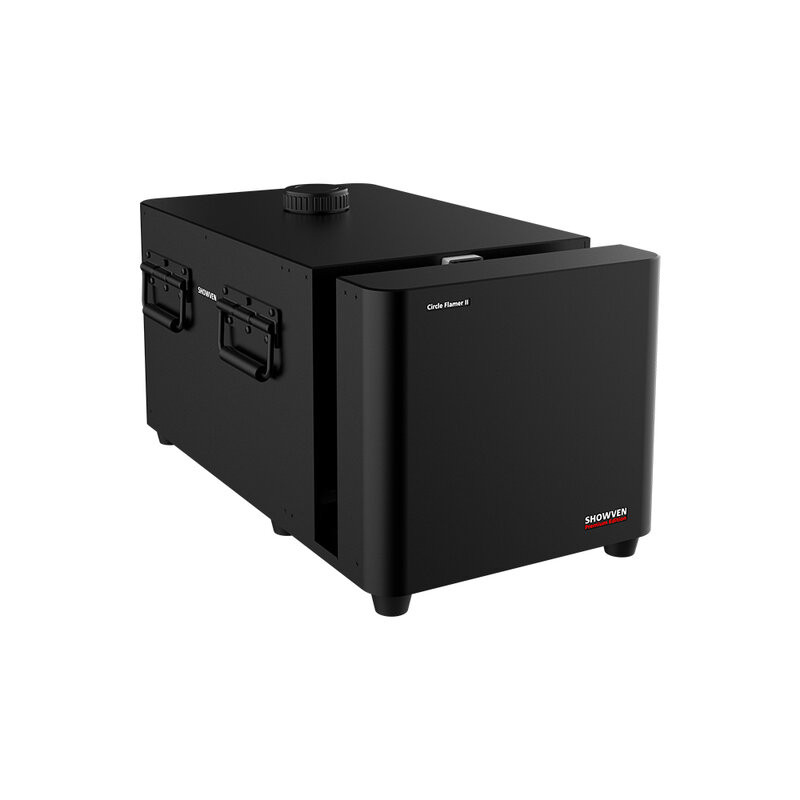

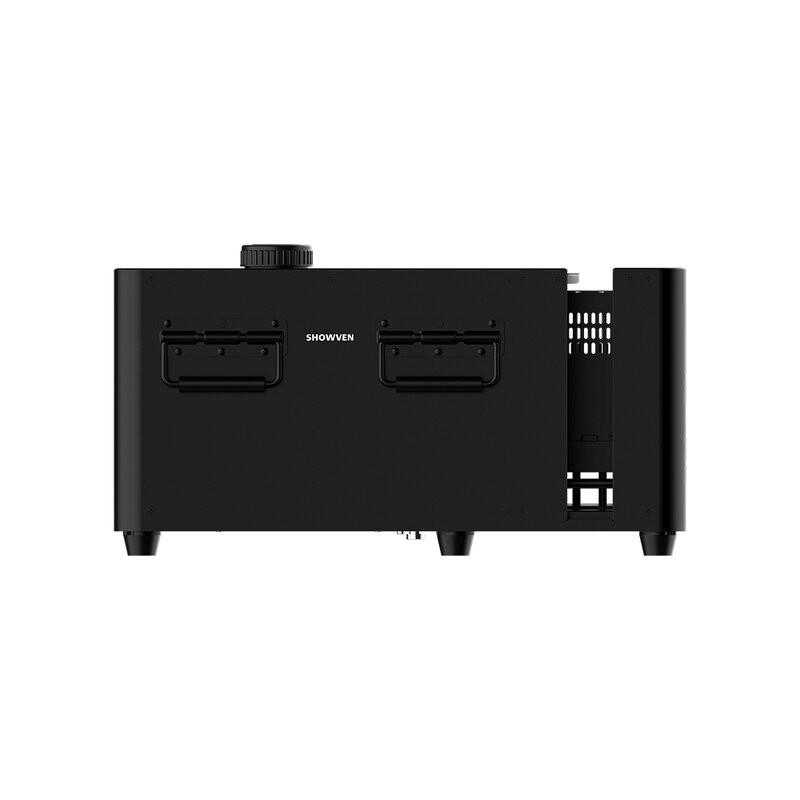

Sparkular CIRCLE FLAMER II

This new flame machine is developed by integrating the second-generation liquid-based flame thrower system with the CIRCLE FLAMER platform, to achieve a longer flame throw (up to 12 m) with 210° flame emission angles and built-in dual high-pressure pump, which ensures a better burning rate than liquid-based flame machines on the market.

The CIRCLE FLAMER II wawing motor with angle block detection and memory function makes it easier for the operator to set the angle limit.

The machine can also be powered by 18650 batteries.

Main features

• The first variable angle flame machine with flame monitoring
• Waving motor with angle lock detection and memory function
• Higher flames, up to 12 m
• 210° ripple angle
• Aluminum housing structure, premium quality
• Powerful double pump for faster burning speed, less fuel residue
• Multiple safety configurations: cascade emergency stop connector, ARM indicator light, safety switch etc.
• Built-in 18650 type battery
• Double valve, dual igniter
• Built-in 9 L fuel tank
• Metal tube structure, durable

Technical characteristics

• Input and power: 100 - 240 V_AC 50/60 Hz, 550 W
• Housing material: aluminum
• Effect direction: 210° (±105°)
• Max. flame height (no wind): nozzle H: 10 - 12 m
• Fuels: Isopar G, H, L, M; Isopropanol
• Fuel tank capacity: 9 L
• Fuel consumption rate: nozzle M: 60 mL/s

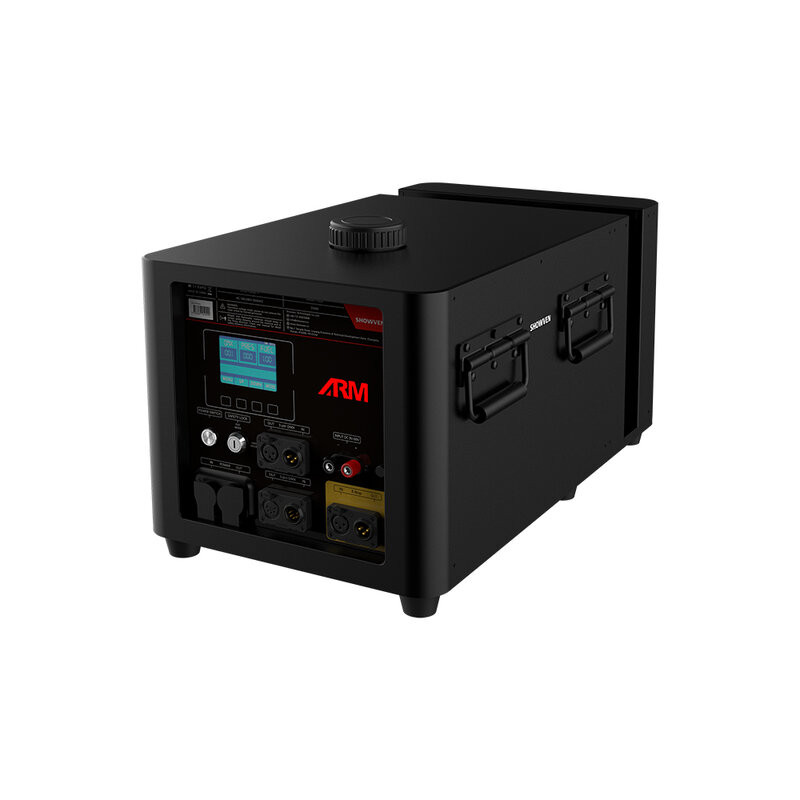

• Interface: Neutrik powerCON TRUE1 IN/OUT; waterproof 3-pin and 5-pin XLR IN/OUT
• Control: DMX, 9 - 60 V Pyro signal
• E-stop: yes
• ARM indicator light: yes
• Liquid level sensor: yes
• Ignition: 2 x high voltage electron ignition
• Valve: dual
• Pump: dual
• Built-in battery design: yes, 18650 battery
• Use in rain: yes
• Dimension: 610 x 330 x 330 mm
• Weight: 32 kg
