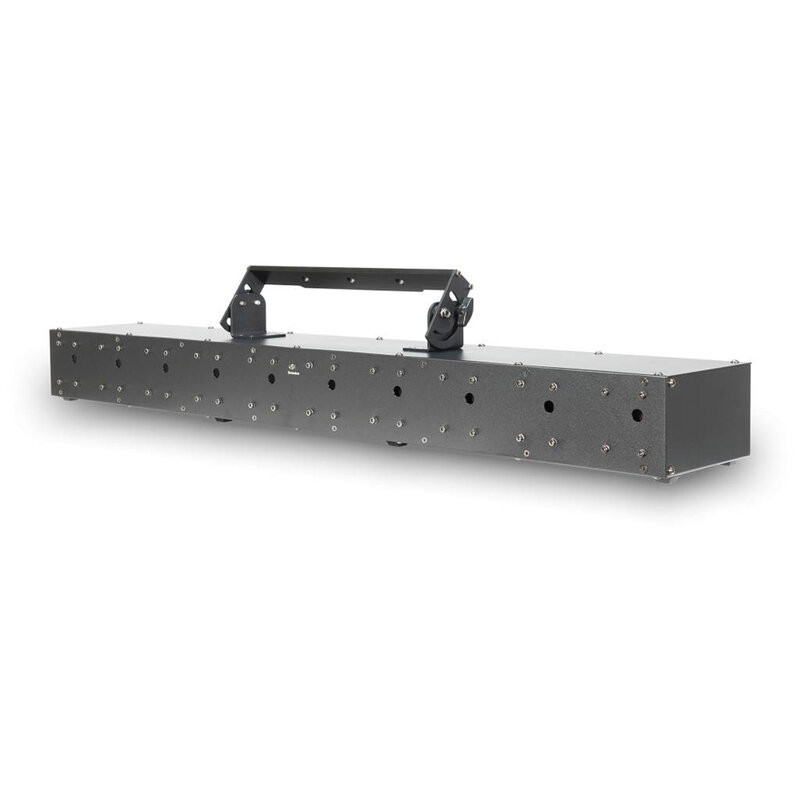

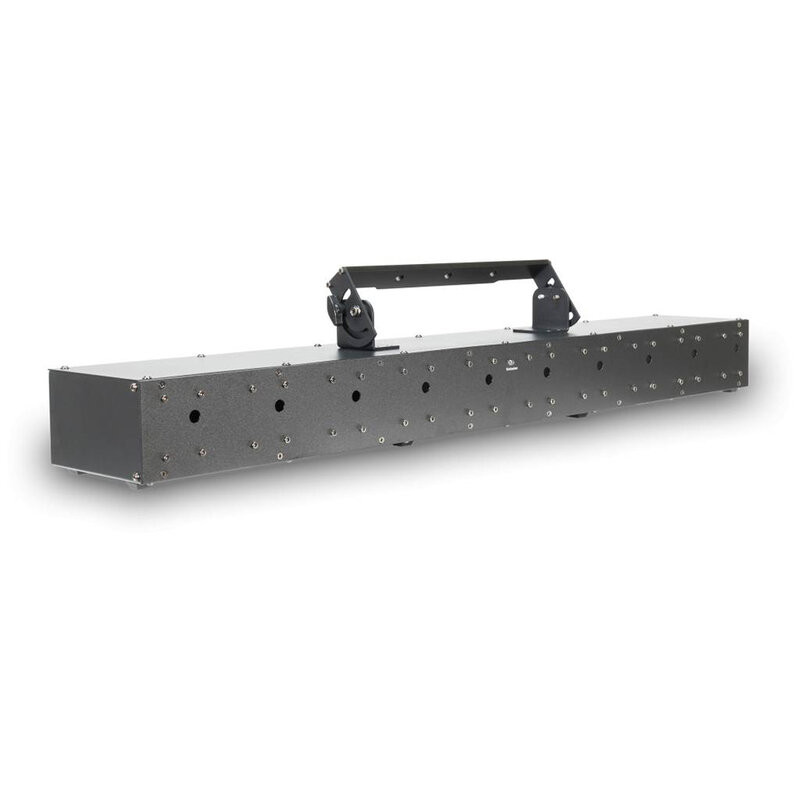

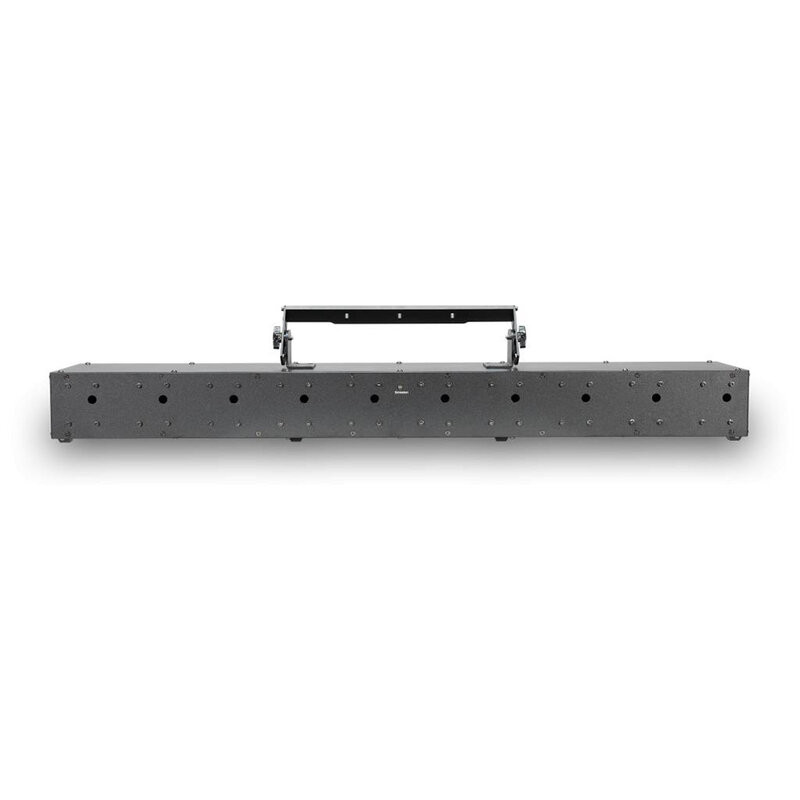

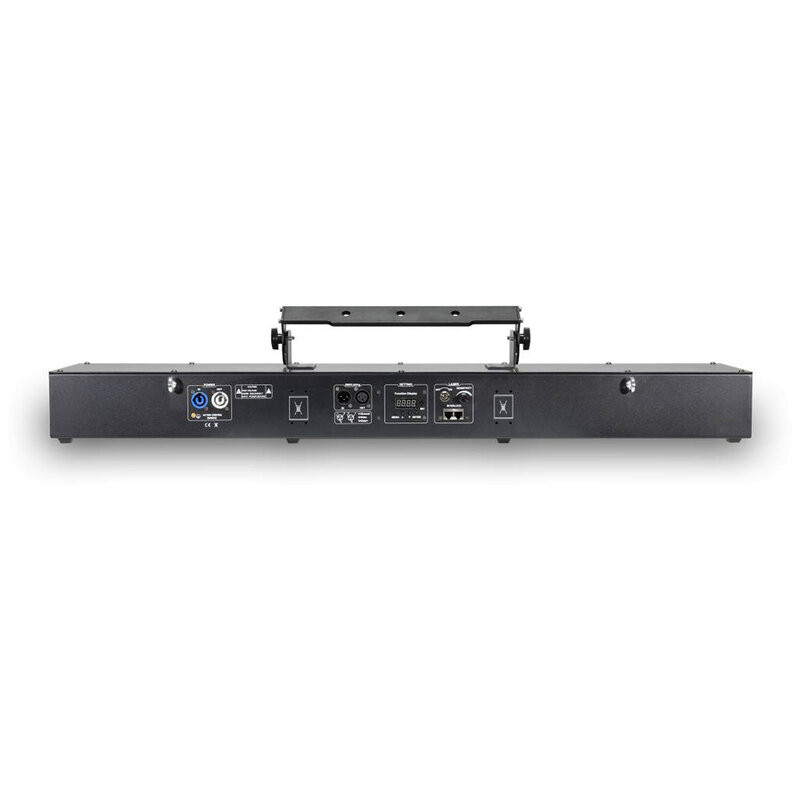

Laserworld BeamBar 10RGB

White light laser bar with 10 individual openings; each laser beam can be controlled independently via standard DMX.

Thanks to the analog modulation capability, it is possible to create millions of colors, including white. Dual control of each beam allows for a variety of chaser, beam or fan effects, making the Laserworld BeamBar 10RGB ideal for use on stages, in live shows, in clubs and discos, as well as in TV shows and productions.

In addition to versatile DMX control, the BeamBar 10RGB can operate in stand-alone or sound-to-light mode.

As mentioned, this laser bar has 10 single beam outputs, each equipped with a 120 mW / 650 nm laser diode for red, 50 mW / 525 nm for green, and 80 mW / 450 nm for blue, which means the ability to create millions of colors plus white.

Each laser beam can be individually aligned via a 4-point alignment system, easily accessible from the front, so no opening of the housing is necessary.

Modulation is analog for better color fading and a much wider color gamut. This makes the device ideal for all applications requiring many different color hues and color fadings.

Thanks to standard DMX compatibility, Laserworld BeamBar 10RGB can be easily integrated into an existing lighting setup.

Finally, this laser projector also works in Master/Slave mode. Show lasers of the same series (slave), connected via DMX to a main projector (master) project the same models as the master projector.

Technical characteristics

• Guaranteed power: 2500 mW
• Power red: 10 x 120 mW / 650 nm
• Power green: 10 x 50 mW / 525 nm
• Power blue: 10 x 80 mW / 450 nm
• Beam specifications: ca. 3.0 mm diameter / 0.6 mrad divergence
• Laser source: diode
• Laser class 3B
• Operation modes: DMX, stand-alone, sound-to-light, Master/Slave
• IP4X rating
• Power supply: 100 - 250 V_AC 50/60 Hz
• Power consumption: 72 W
• Dimensions: 1000 x 160 x 105 mm
• Weight: 10.5 kg
• Accessories: Interlock connector, manual, key
