Laserworld BeamBar 10R MK3

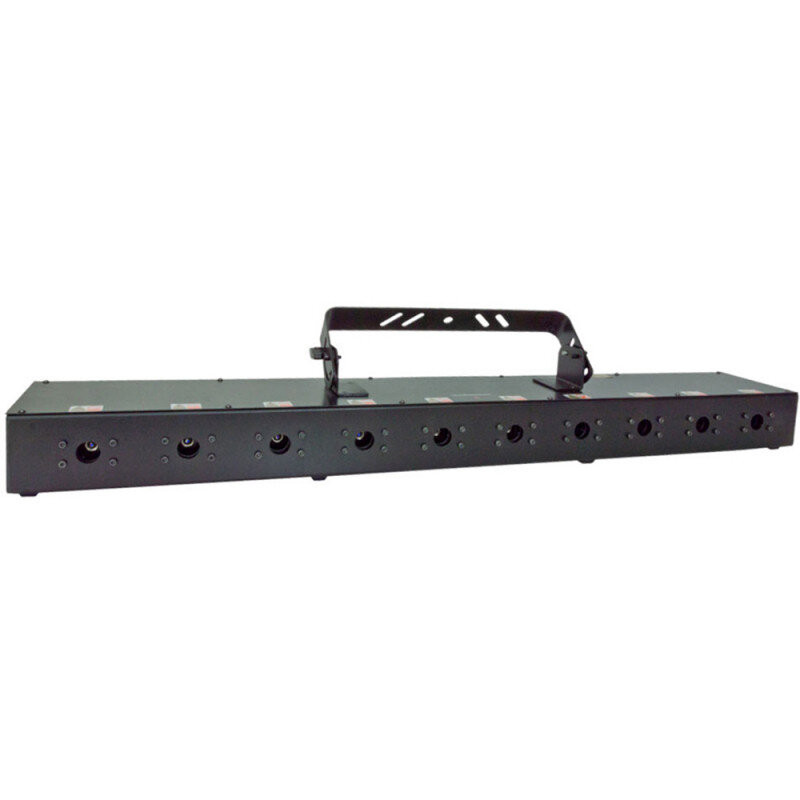

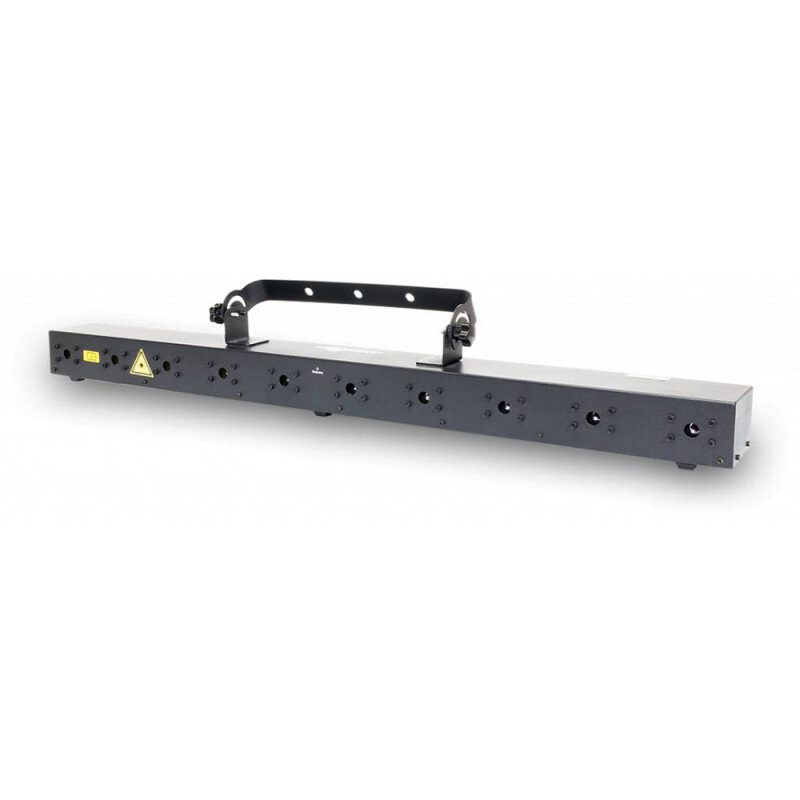

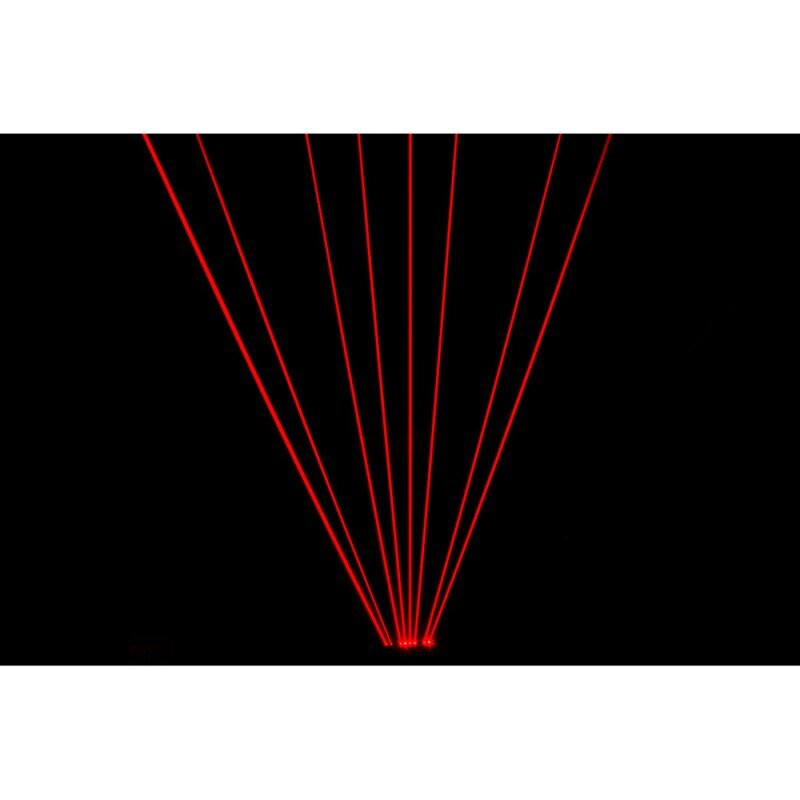

The Laserworld BeamBar 10R MK3 - 638 - RED is a laser bar with 10 single beam outputs, each equipped with a bright and highly visible 120 mW / 638 nm red laser diode for a total output of 1200 mW. Each laser beam can be individually aligned via a 4-point system, which is easily accessible from the front, so no opening of the housing is necessary.

This show laser effect provides analogue modulation, which results in better fades and a much wider colour tone.

The Laserworld BeamBar 10R MK3 - 638 - RED can be controlled via 13 DMX channels, so each diode can be controlled individually and many different chaser, beam or fan effects can be created. Thanks to standard DMX compatibility, it can easily be integrated into any lighting setup.

This laser projector also has a Master/Slave mode. Lasers of the same series (Slave), connected via DMX to a main projector (Master), automatically project the same patterns as the main projector. There is also an audio mode to project in stand alone mode in time with the music.

It is suitable for professional entertainment lighting applications, including stages, concerts, shows and TV productions, music festivals, discos, DJs, clubs, nightclubs, bars, service and rental companies.

It is suitable for professional entertainment lighting applications, including stages, concerts, shows and TV productions, music festivals, discos, DJs, clubs, nightclubs, bars, service and rental companies.

Technical characteristics

• Guaranteed power at aperture: 1200 mW
• Power red: 10 x 120 mW / 638 nm
• Beam specifications: ca. 3.0 mm / 1.1 mrad
• Laser source: diode
• Laser class: 3B
• Operation modes: DMX, stand-alone, sound-to-light, Master/Slave
• Accessories: Interlock connector, manual, key
• IP rating: IP4X
• Power supply: 85 - 250 V_AC 50/60 Hz
• Power consumption: 50 W
• Dimensions: 1000 x 160 x 80 mm
• Weight: 9.0 kg
