SKU: AF-5XR

ean13: 4710586554014

mpn: AF-5XR

Antari

Antari AF-5XRE

AF-5X high output effects fan, 5-pin DMX, RDM compatible and wireless remote
star_border star_border star_border star_border star_border
(0)

644.50 €

(VAT excluded)

Pay in 4 interest-free payments of 161.13 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock.
Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
644.50 €
Condition

Not available.

delivery is not available for this product.

Free shipping for orders over € 199 (within Europe)

Variants of this product

Antari - AF-3E

268.00 €

Small fan effect with DIP switches, DMX (5-pin), power output
Antari - AF-3XE

225.50 €

AF-3X Small Effect Fan w / DIP switches DMX (5-pin)
Antari - AF-4E

502.50 €

Medium-sized effect fan with 5-pin DMX control, effective range up to 20 m
DJ Power - H-9

455.50 €

Professional fan, DMX and wireless remote control, adjustable wind speed
Antari - AF-6E

1,461.00 €

Powerfull effects fan, 5-pin DMX, Neutrik powerCON and RDM compatible
DJ Power - H-9

401.00 €

Professional fan, DMX and wireless remote control, adjustable wind speed

EN Instruction manual (1.63MB)

NO DESC

Documentation

Product details

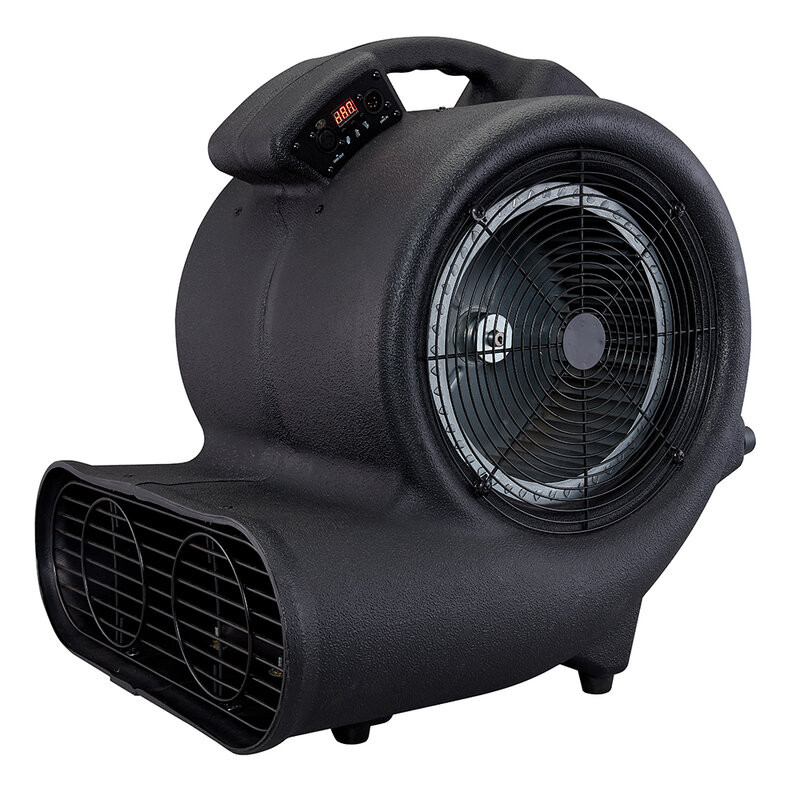

Antari AF-5XRE is a 1600 W special effects fan designed to create various wind effects.

It offers three speed settings ranging from 1242 to 1480 revolutions per minute (rpm) for the 110 V model and from 1175 to 1289 rpm for the 220 V model. The fan can generate an airflow of 1743 CFM (high speed), 1567 CFM (medium speed) and 1351 CFM (low speed). It can be controlled manually, via DMX 512 or with an optional wireless control, and has one DMX channel.

The body is made of flame retardant plastic (PE 9731), ensuring safety and durability.

Technical characteristics

  • Rated voltage:
    • US model: 100 - 120 VAC 50/60 Hz 13 A
    • EU model: 220 - 240 VAC 50/60 Hz 7.25 A
  • Rated power: 1600 W
  • Ambient temp range: 0 – 40 °C
  • Air flow:
    • High: 1743 CFM
    • Medium: 1567 CFM
    • Low: 1351 CFM
  • Fan speed:
    • 110 VAC 60 Hz: 1242 – 1480 rpm
    • 220 VAC 60 Hz: 1175 – 1289 rpm
  • Working noise level at 1 m: 81.8 dB
  • Housing material: flame retardant plastic (PE 9731)

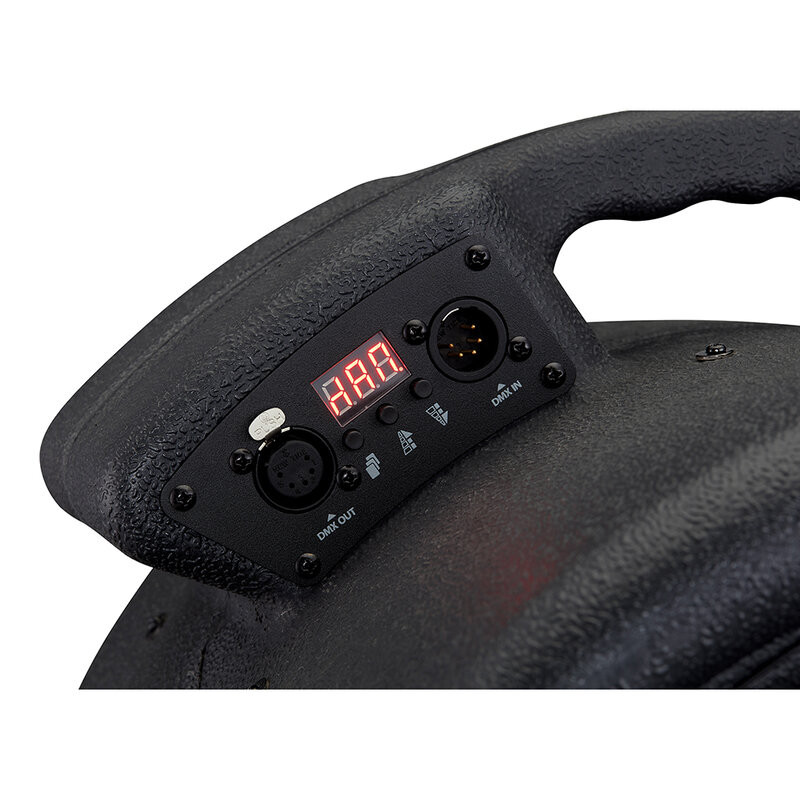

  • Control: manual, DMX 512
  • DMX channels: 1 channel
  • Connection: XLR 5-pin (DMX)
  • Included accessories: wireless (AF-5XR)
  • Optional accessories: AF-5X-HB hanging bracket
  • Dimension (L x W x H): 55.8 x 46.5 x 57.8 cm
  • Weight: 17.5 kg
